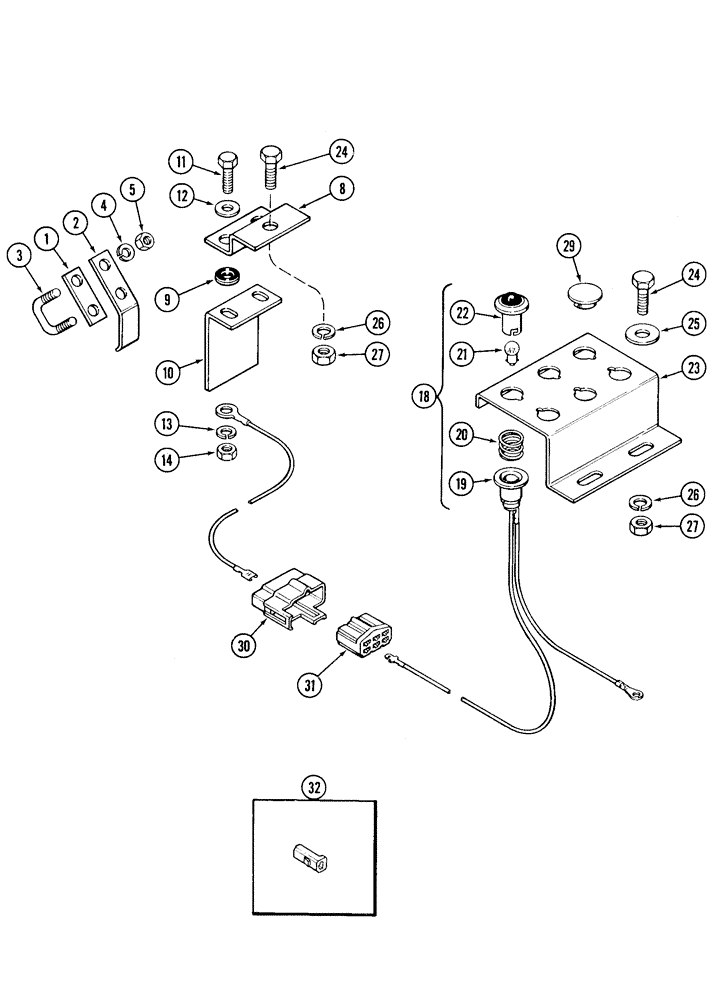

Запчасти Case IH 5500 (4-12) - FEEDSHAFT ROTATION INDICATOR (04) - ELECTRICAL SYSTEMS

1

816792C1

STRAP

indicator u-bolt clamping

2шт.

2

816791C1

CLIP

indicator retaining

2шт.

3

11261R

U-BOLT

US .25 .75W 1.17D UNC GR5 YZD .625'' THREAD

2шт.

4

80682

LOCK WASHER,1/4"

4шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

8

816789C1

BRACKET

indicator

2шт.

9

117960

GROMMET,5/16" ID x .719" x .188"

4шт.

10

816790C1

ANGLE

indicator contact

2шт.

11

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

12

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

4шт.

13

80681

LOCK WASHER,5/16"

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

4шт.

18

676922R91

LAMP

warning assy 12V

4шт.

19

NSS

NOT SOLD SEPARAT

SOCKET, Lamp, Order: 676922R91

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING, Lamp

1шт.

21

214045

BULB

NO.1895 14V

1шт.

22

NSS

NOT SOLD SEPARAT

LENS, Lamp

1шт.

23

816788C1

PANEL

indicator light

1шт.

24

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

25

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

26

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

27

9628503

NUT,3/8"-16, G5

3шт.

29

816848C1

PLUG

plastic 11/16" od

5шт.

30

405002C1

MULTIPOLE CONNECTOR,Male, 7 Pin

cab plstc rec 7C

1шт.

31

892136C1

ELEC CONNECTOR,Female

cab plastic rec 6c

1шт.

32

188395R1

WIRE CONNECTOR,Male

wire

1шт.

33

280580

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

5шт.

34

12034871

WASHER

5/8"

5шт.

35

280374

NUT,Hex, 5/8" - 11, Gr 5

5шт.
