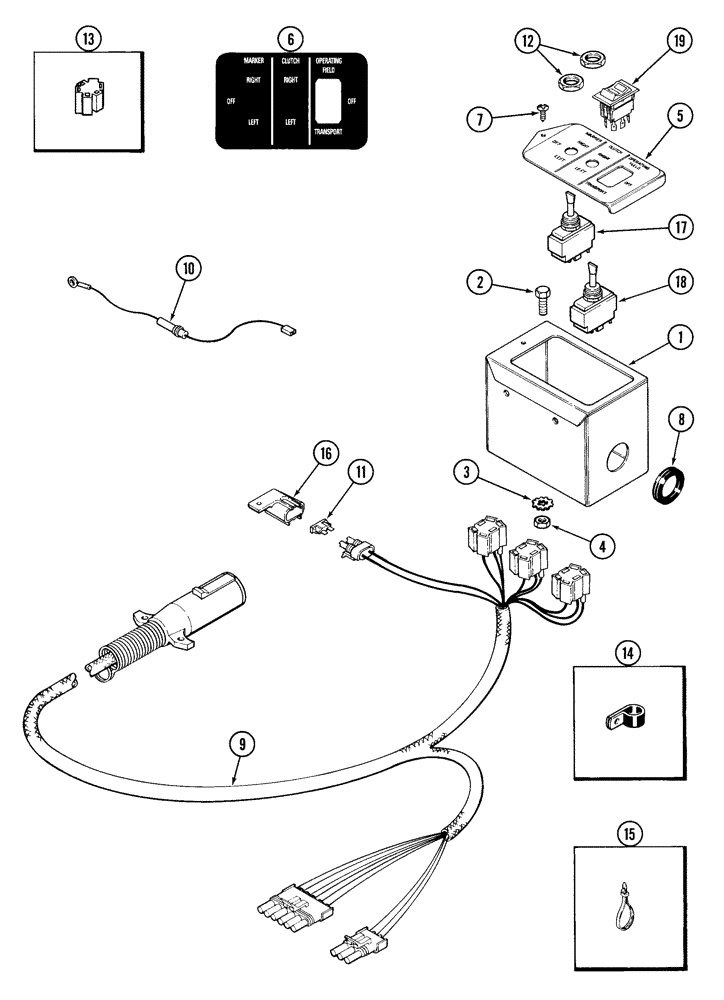

Запчасти Case IH 5500 (4-10) - ELECTRICAL HARNESS - TRACTOR, ELECTRONIC SELECTOR (04) - ELECTRICAL SYSTEMS

1

116259C4

BOX

chassis metal grain drill

1шт.

2

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

3

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

183744A1

PLATE ASSY.

CONTROL

1шт.

6

183741A1

DECAL

control panel 3 switch

1шт.

7

260-1446

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

1шт.

8

D73137

GROMMET

1шт.

9

92059C2

HARNESS

folding box drill

1шт.

10

149506C1

CABLE

assy switch

1шт.

11

A149802

FUSE

20 Amp

1шт.

12

57603C1

NUT

SWITCH

1шт.

13

491058C1

CONTACT HOUSING,Female, Pole

5 wire, female

1шт.

14

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

J 3/8" cable

1шт.

15

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

4шт.

16

225156C1

ELEC CONNECTOR

Fuse Cover

1шт.

17

121542C1

SWITCH

toggle DPDT on off on

1шт.

18

107379A1

SWITCH

toggle dpdt on on on

1шт.

19

245046C1

SWITCH

rock SPDT on off on

1шт.
