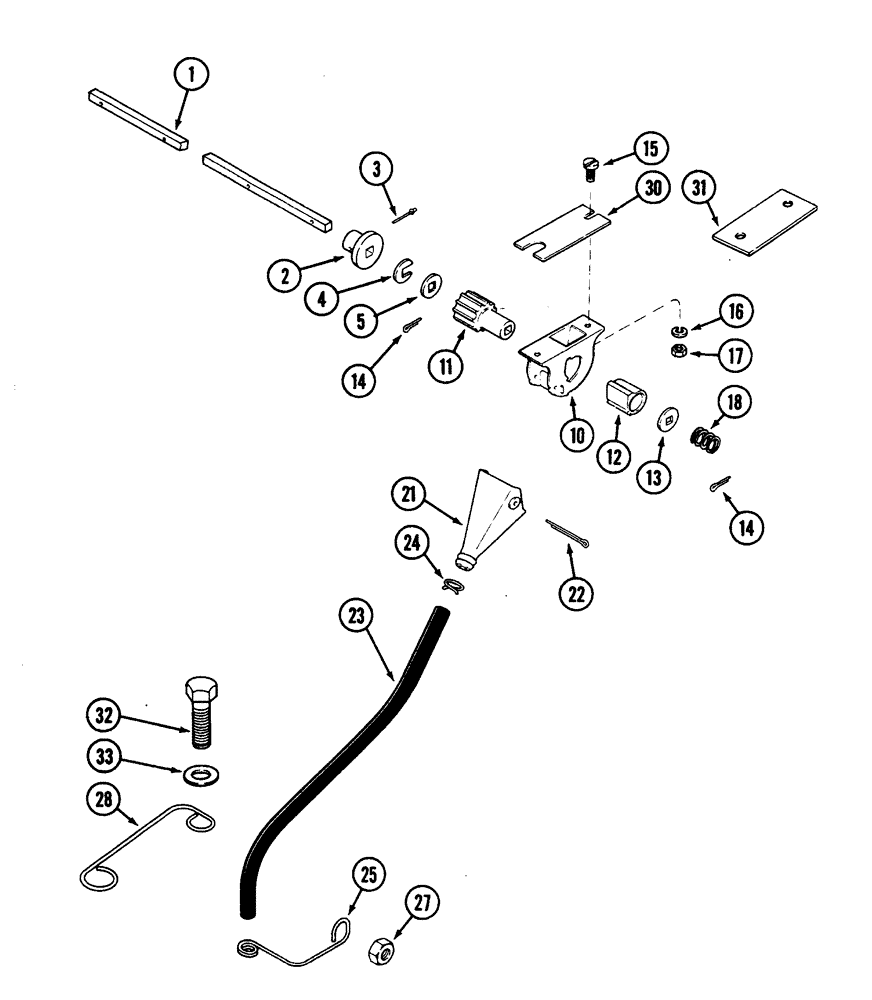

Запчасти Case IH 5500 (9-80) - GRASS SEED ATTACHMENT, GRASS FEED (09) - CHASSIS

1

95680C1

BAR

square 5/16" x 82 9/32" long

2шт.

1

95682C1

BAR

FEED SHAFT (18 X 10)

2шт.

2

819227C1

SLEEVE

sintered

2шт.

3

45-214

RIVET,But Hd, 1/8" x 7/8"

2шт.

4

N32109

WASHER

11/32" id x 7/8" od x 1/64" thick

1шт.

5

498-81000

SQ HOLE WASHER,.344" x 3/4" x .018", Sq. Hole

1шт.

10

600924R93

CUP ASSY.

GRASS SEED

1шт.

10

NSS

NOT SOLD SEPARAT

CUP, Feed

1шт.

11

601463R1

FINGER ASSY.

roller fluted grass feed

1шт.

12

600923R2

BLOCK

thimble - shut off

1шт.

13

498-81001

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

1шт.

14

80755

COTTER PIN,1/8" OD x 1" L

1шт.

15

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1шт.

16

80682

LOCK WASHER,1/4"

1шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

18

N32176

SPRING

C .072" wire x .594" od x 3/4" long

1шт.

21

603817R3

TUBE

funnel poly black

1шт.

22

32-832

COTTER PIN,1/8" x 2"

1шт.

23

NSS

NOT SOLD SEPARAT

TUBE, Feeder, 50-1/2 inch Long, Order: 997790R1, Cut To Length

1шт.

24

86624006

HOSE CLAMP,20.12mm - 21.13mm

1шт.

25

1263691C1

HOOK

.135" wire

1шт.

27

280431

NUT,1/2"-13, G5

1шт.

28

1263690C2

CLIP

.135" wire

1шт.

30

818183C1

PROTECTIVE COVER

BAR, FEED

1шт.

31

1986371C1

COVER

grass seed bottom

1шт.

32

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

33

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

1шт.
