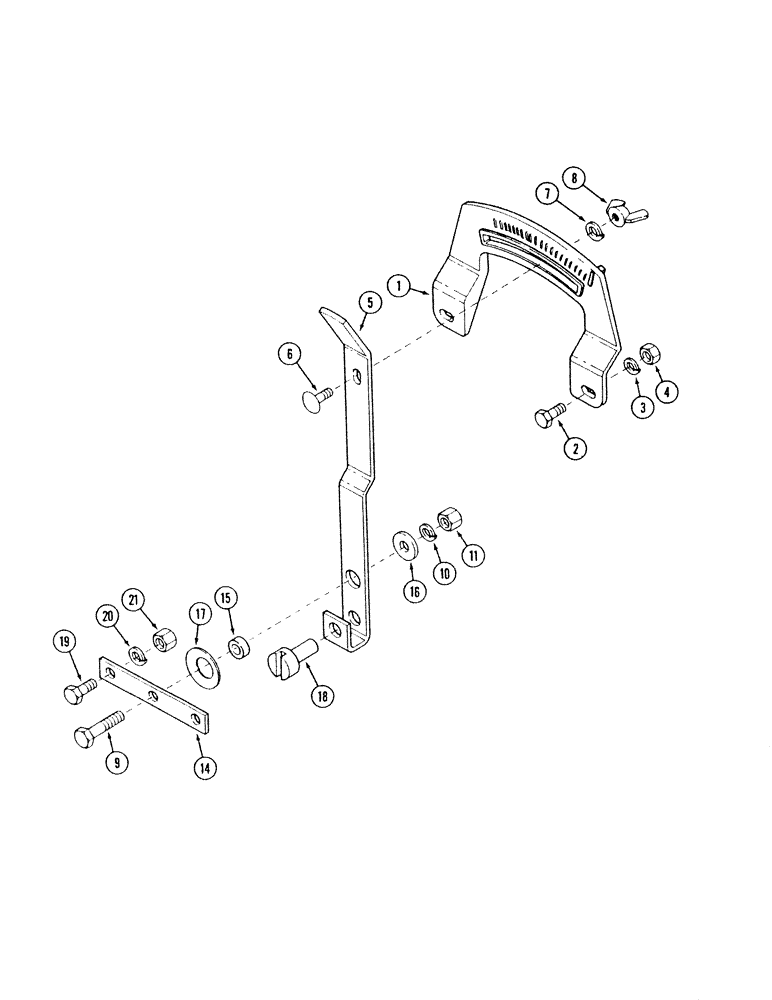

Запчасти Case IH 5500 (9-76) - GRASS SEED ATTACHMENT, FEED INDICATOR (09) - CHASSIS

1

815627C1

INDICATOR

feed

2шт.

2

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

4

9628503

NUT,3/8"-16, G5

4шт.

5

815628C2

CONTROL LEVER

indicator

2шт.

6

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

7

80681

LOCK WASHER,5/16"

2шт.

8

80801

WING NUT

5/16"-18

2шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

11

9628503

NUT,3/8"-16, G5

2шт.

14

815629C1

BAR

flat 1/8"tk 3/4"w reinforcing

2шт.

15

95944C1

BUSHING

11/16" od x 3/8" id x .3" thick

2шт.

16

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

17

151401C1

BELLEVILLE WASHER

spring 3/4" x 1 1/2" x .072

2шт.

18

815630C1

PIN,25.4mm OD x 42.16mm L

shifting

2шт.

19

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

20

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

21

9628503

NUT,3/8"-16, G5

4шт.
