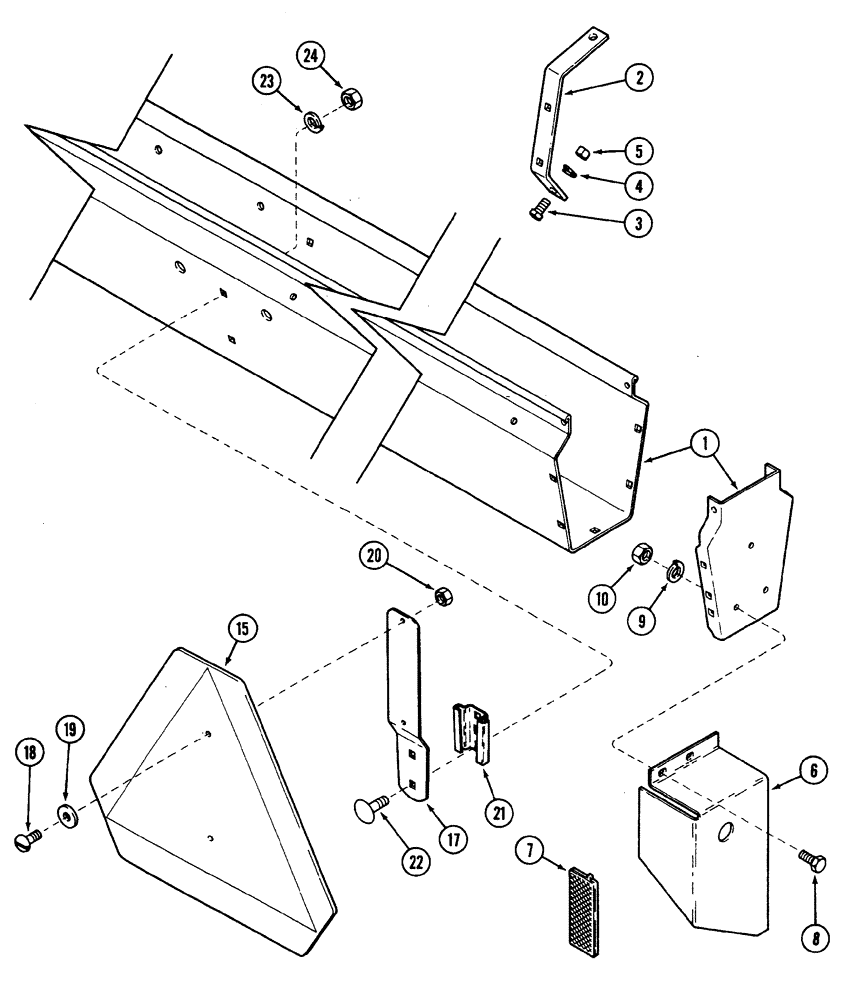

Запчасти Case IH 5500 (9-74) - GRASS SEED ATTACHMENT, HOPPER SUPPORT, SMV EMBLEM (09) - CHASSIS

1

REF

INSTRUCTION

HOPPER, Grass Seed

1шт.

2

815636C1

BRACKET

Brace hopper support intermediate

3шт.

3

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

5

9628503

NUT,3/8"-16, G5

1шт.

6

97644C1

GUARD

W/DECAL, LH (Includes 1284374C1)

1шт.

6

97645C1

GUARD ASSY.

W/DECAL, CHAIN RH

1шт.

7

1284374C1

REFLECTOR,Reflector Red

red

1шт.

8

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

9

80681

LOCK WASHER,5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

1шт.

15

A59450

WARNING SIGN

Emblem Assembly, SMV

1шт.

15

NSS

NOT SOLD SEPARAT

EMBLEM, Slow Moving Vehicle

1шт.

15

311858A1

DECAL

SMV Emblem

1шт.

17

A59451

BRACKET

SMV EMBLEM

1шт.

18

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2шт.

19

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

2шт.

20

87304

NUT,#10-24

2шт.

21

847590

BRACKET

socket, female, SMV emblem

1шт.

22

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

2шт.

23

80681

LOCK WASHER,5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.
