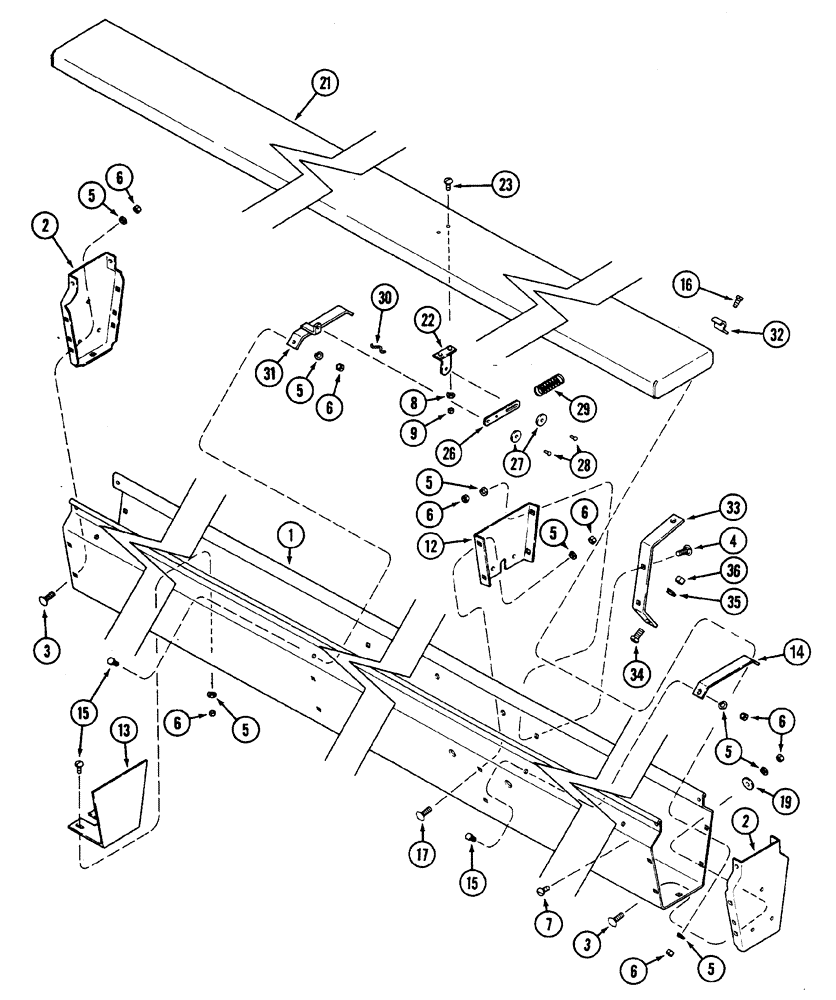

Запчасти Case IH 5500 (9-72) - GRASS SEED ATTACHMENT, HOPPER (09) - CHASSIS

1

95683C1

HOPPER

grass seed 15 x 7

1шт.

1

95685C1

HOPPER

GRASS SEED (18 X 10)

1шт.

15' Drill With 10" Spacing

1шт.

2

815596C1

PANEL, SIDE

hopper head

2шт.

3

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

1шт.

4

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

5

80681

LOCK WASHER,5/16"

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

1шт.

7

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

4шт.

8

80682

LOCK WASHER,1/4"

4шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

12

815597C1

PLATE

baffle hopper

3шт.

15' Drill

1шт.

13

815598C1

BAFFLE

assembly - grass seed

6шт.

14

815599C1

BRACKET

Brace grass and brome box

4шт.

15

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

1шт.

16

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

17

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

19

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

21

816861C1

COVER

brome box 14'

1шт.

22

815615C1

SUPPORT

bracket

1шт.

23

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

2шт.

26

N32052

BAR

plunger

1шт.

27

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

2шт.

28

45-36

RIVET,But Hd, 3/16" x 3/8"

2шт.

29

6628

SPRING

C .08WR .847OD 2.25LG

1шт.

30

N32114

LINCH PIN

spring 1/8" wire, saddle

1шт.

31

815616C1

BRACKET

lid latch pivot

1шт.

32

815618C1

CLAMP

tube 1/2" x 7/8"w

7шт.

33

815636C1

BRACKET

Brace hopper support intermediate

3шт.

34

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.

35

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

36

9628503

NUT,3/8"-16, G5

1шт.
