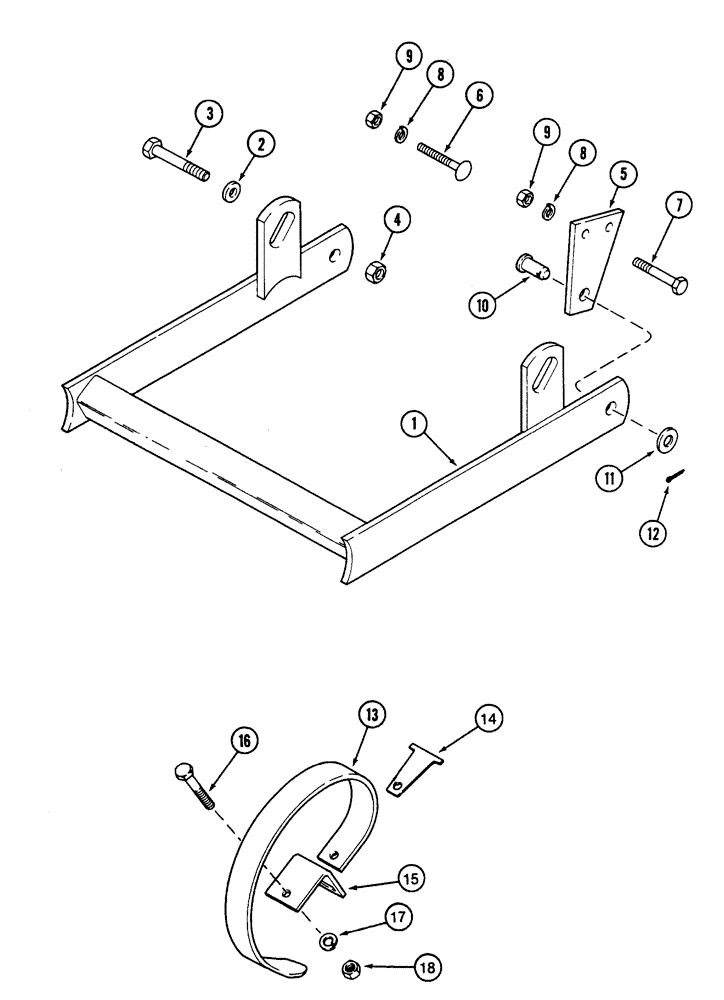

Запчасти Case IH 5500 (9-70) - TRACK ERASER, GAUGE WHEEL (09) - CHASSIS

1

1985985C1

FRAME

track eraser

2шт.

2

320993R1

SPACER,7/8" Tube x 1/2"

4шт.

3

9827853

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 5

2шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

1985969C1

BAR

mounting

4шт.

6

433-856

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

4шт.

7

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

9

280431

NUT,1/2"-13, G5

8шт.

10

86624065

HEADED PIN,3/4" x 7/8", G2

4шт.

11

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

12

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

4шт.

13

1985967C1

TOOTH

spring special

4шт.

14

484625R1

STRAP

tooth locator

4шт.

15

484623R1

ANGLE

tooth clamp

4шт.

16

87870

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

4шт.

17

81547

LOCK WASHER,7/16"

4шт.

18

280717

NUT,7/16"-14, G5

4шт.
