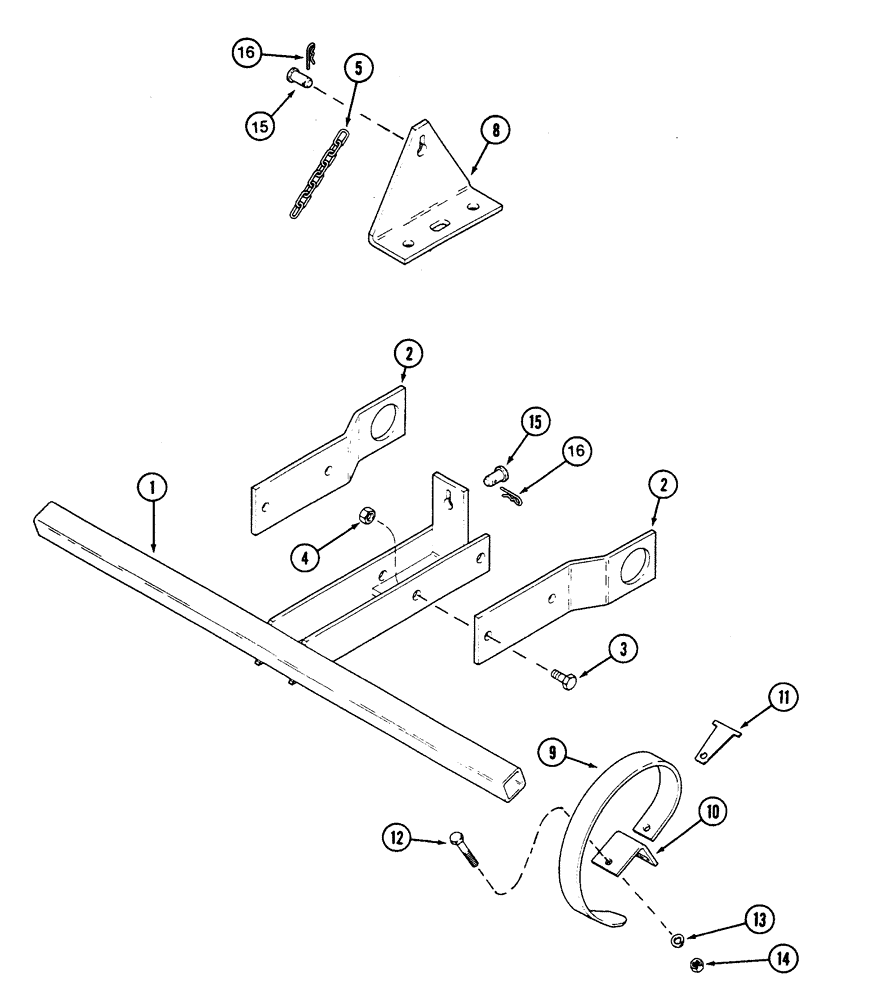

Запчасти Case IH 5500 (9-68) - TRACK ERASER, CART FRAME (09) - CHASSIS

1

1986001C1

FRAME

assembly track eraser

2шт.

2

1976248C1

PLATE

track eraser

4шт.

3

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

8шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

5

1985997C1

CHAIN (AG)

TWIST LINK 45.6 IN LG YZD .922 PITCH

1шт.

8

1985996C2

SUPPORT

angle

2шт.

9

1985967C1

TOOTH

spring special

8шт.

10

484623R1

ANGLE

tooth clamp

8шт.

11

484625R1

STRAP

tooth locator

8шт.

12

87870

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

8шт.

13

81547

LOCK WASHER,7/16"

8шт.

14

280717

NUT,7/16"-14, G5

8шт.

15

86624065

HEADED PIN,3/4" x 7/8", G2

4шт.

16

87327559

COTTER PIN

9/64" x 2 15/16"

4шт.
