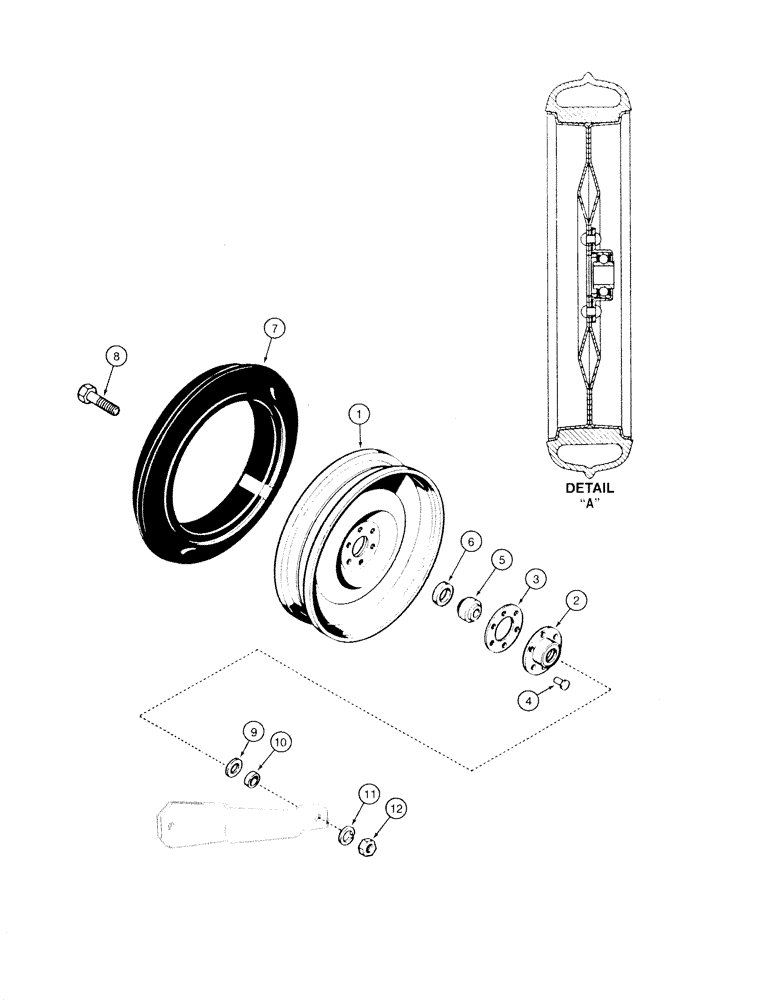

Запчасти Case IH 5500 (9-60) - DEPTH PRESS WHEEL, 3 X 13 INCH, METAL WHEEL (09) - CHASSIS

0

1973102C2

WHEEL

ASSY W/TIRE 13 INCH

1шт.

1

NSS

NOT SOLD SEPARAT

WHEEL, Depth Press

1шт.

2

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

BEARING

1шт.

3

602992R2

GASKET,0.79mm Thk

BEARING RETAINER

1шт.

4

86624111

RIVET,6.35mm OD x 14.29mm L

6шт.

5

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

#BB203RR2 Torrington

1шт.

6

1985914C1

SPACER, RING

1шт.

7

842666C1

TYRE/TIRE

press 3" x 13 3/8"

1шт.

8

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

1шт.

9

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

1шт.

10

610993R1

WASHER

WASHER, WHEEL

1шт.

11

12034871

WASHER

5/8"

1шт.

12

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.
