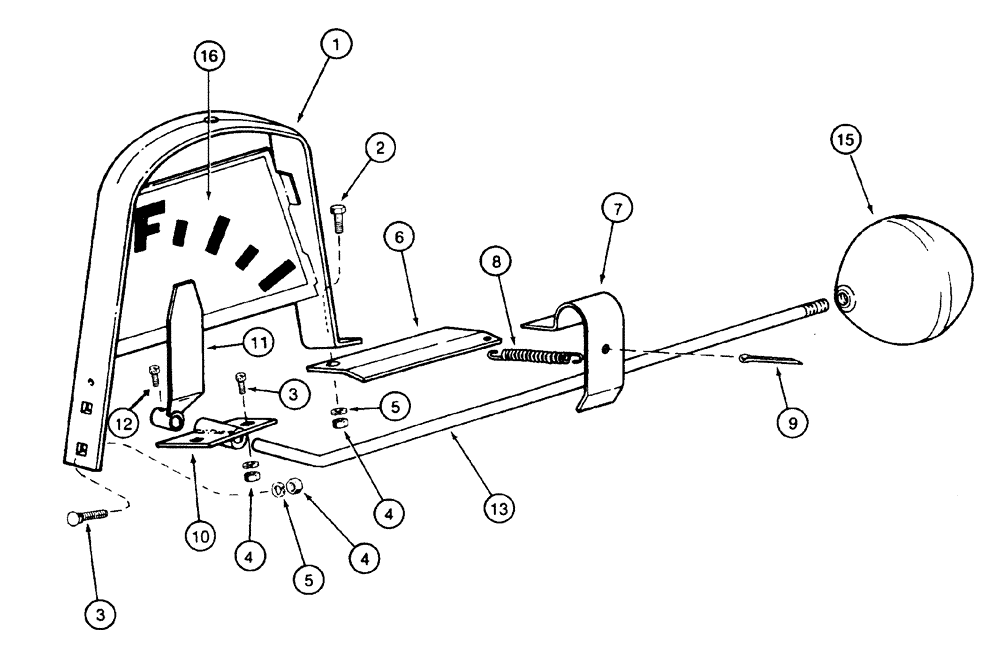

Запчасти Case IH 5500 (9-52) - FERTILIZER/SEED LEVEL INDICATOR (09) - CHASSIS

1

816846C1

PLATE

indicator

1шт.

2

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

3

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

4

9635082

NUT,5/16" - 18, Gr 5

5шт.

5

80681

LOCK WASHER,5/16"

5шт.

6

816802C1

SUPPORT

level indicator

1шт.

7

816801C1

CLAMP

level indicator

1шт.

8

N62683

SPRING

E .032" wire x 1/4" od x 1 7/8" long

1шт.

9

80755

COTTER PIN,1/8" OD x 1" L

1шт.

10

815793C1

ARM

swivel

1шт.

11

815795C1

INDICATOR

fertilizer

1шт.

12

483-1104

SET SCREW,Hex Soc, #10-24 x 1/4"

1шт.

13

815798C1

ROD

float

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

15

815799C1

BALL

float, plastic - tank level

1шт.

16

2753805R1

DECAL

Fertilizer Indicator

1шт.
