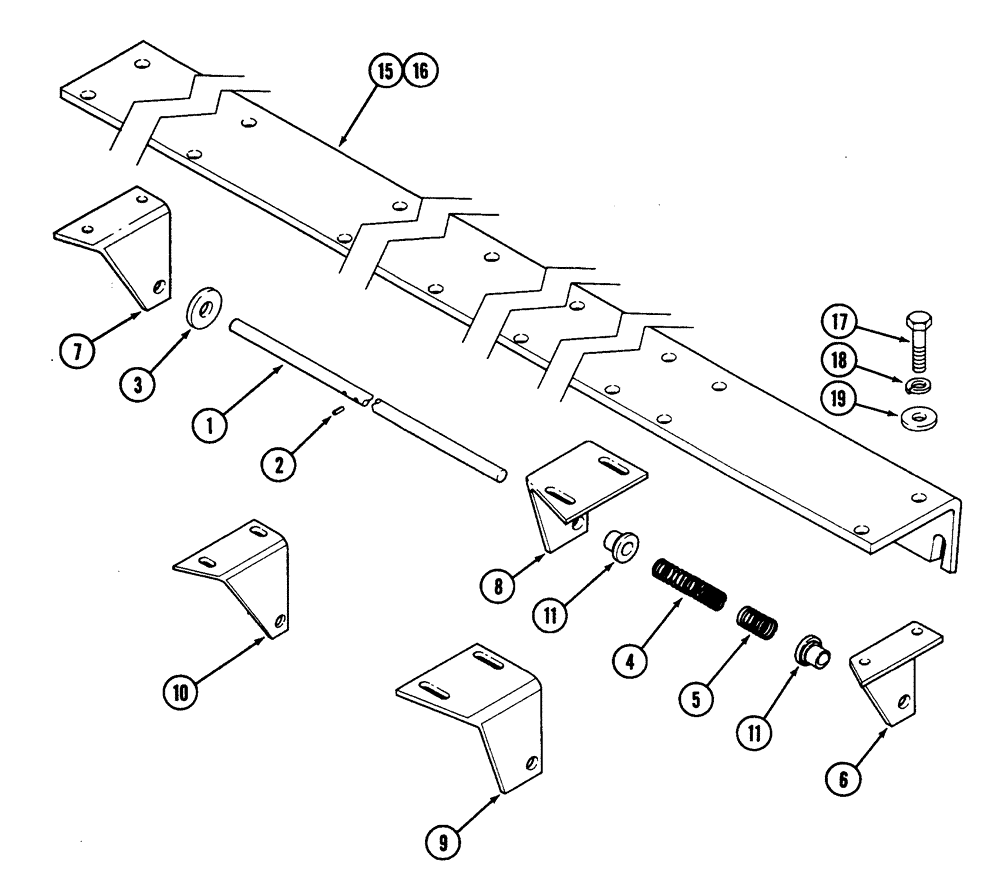

Запчасти Case IH 5500 (9-44) - DRAW BAR, CONVENTIONAL ROW (09) - CHASSIS

1

1973301C1

ROD

DRAWBAR PIVOT

2шт.

2

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

4шт.

3

87366

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

4шт.

4

16046D

SPRING

C, 3/32" wire 1 1/16"od 4 19/32"long

1шт.

5

1969125C1

SPRING

C .08 wire x 1.07 od x 1.98 long

8шт.

6

1279612C1

ANGLE

pivot shaft LH

8шт.

6

1279612C1

ANGLE

pivot shaft LH

2шт.

6

1279612C1

ANGLE

pivot shaft LH

10шт.

7

1279613C1

ANGLE

pivot shaft RH

8шт.

7

1279613C1

ANGLE

pivot shaft RH

2шт.

7

1279613C1

ANGLE

pivot shaft RH

10шт.

8

1986021C1

ANGLE

pivot shaft LH

2шт.

8

1986021C1

ANGLE

pivot shaft LH

6шт.

9

1986022C1

ANGLE

PIVOT SHAFT RH

2шт.

9

1986022C1

ANGLE

PIVOT SHAFT RH

10шт.

10

1969257C1

ANGLE

pivot shaft

2шт.

11

815264C1

BUSHING,19.43mm ID x 24.89mm OD x 31.24mm L

insert Zytel

1шт.

15

1973282C1

ANGLE

FURROW OPENER LH

2шт.

15

1986026C1

ANGLE

furrow opener LH 48" x 7 1/2"

2шт.

15

1973284C1

ANGLE

furrow opener 36" x 10"

2шт.

16

1986086C1

ANGLE

FURROW OPENER RH

2шт.

16

1986085C1

ANGLE

furrow opener RH 48 x 7 1/2"

2шт.

16

1986087C1

ANGLE

furrow 36" x 10" RH

2шт.

17

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

44шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

44шт.

19

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

44шт.
