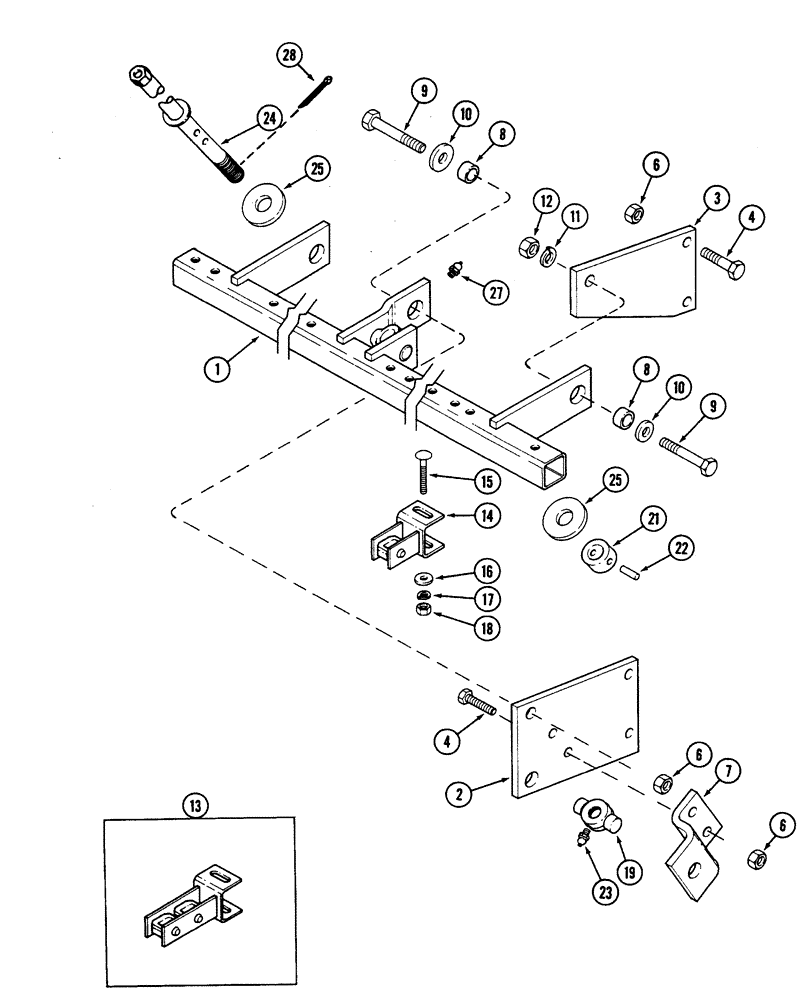

Запчасти Case IH 5500 (9-34) - ROCKSHAFT (BSN CKB0030000) (09) - CHASSIS

1

90926C2

TUBE

PRESSURE BAR

4шт.

1

1986025C2

TUBE

PRESSURE BAR

4шт.

2

1279912C1

PLATE

lift bar inner support

4шт.

3

1279913C1

PLATE

lift bar outer support

8шт.

4

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

32шт.

6

85700693

NUT,5/8" - 11, Gr C

32шт.

7

1279914C1

ARM

lift bar hammer strap 1/2" thick

4шт.

8

1279931C1

SPACER

30.175mm OD x 20.615mm ID x 17mm long

12шт.

9

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

12шт.

10

495-81044

WASHER,0.78" ID x 1.75" OD x 0.12" Thk

12шт.

11

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

12шт.

12

280954

NUT,3/4"-10, G5

12шт.

13

1978923C1

BRACKET

assy lift rod

1шт.

14

1279928C2

BRACKET

ASSY, LIFT ROD

1шт.

15

433-856

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

1шт.

16

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

18

280431

NUT,1/2"-13, G5

1шт.

19

91393C2

TRUNNION

4шт.

21

91100C1

SPACER

lift crank 1 3/4" od x 1 1/16" id

4шт.

22

87023162

PIN,9.53mm OD x 44.45mm L

4шт.

23

219-86

LUBE NIPPLE,1/8" NPTF

4шт.

24

135573A2

ROD

adjustment

4шт.

25

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

8шт.

27

80719

LUBE NIPPLE,1/8" NPT

4шт.

28

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

4шт.
