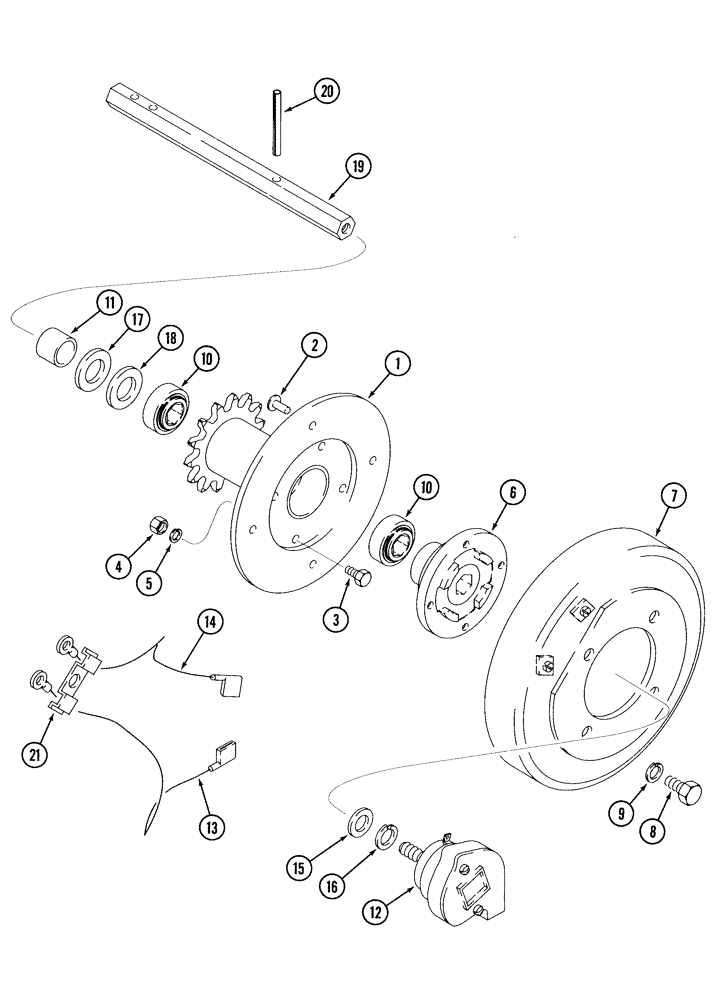

Запчасти Case IH 5500 (9-32) - ELECTRIC CLUTCH (09) - CHASSIS

0

107654A1

CLUTCH

electric

1шт.

0

102100A1

HUB,218.08mm OD

and armature assembly

2шт.

0

NSS

NOT SOLD SEPARAT

ARMATURE, Electric Clutch, Order: 102100A1 Assembly

1шт.

Not Shown

1шт.

1

102223A1

HUB

and sprocket assembly

1шт.

2

47-56

RIVET,FH, 5/16" x 3/8"

4шт.

3

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

4

9635082

NUT,5/16" - 18, Gr 5

4шт.

5

80681

LOCK WASHER,5/16"

4шт.

6

102104A1

HUB

clutch

1шт.

7

179861C93

MAGNET

1шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

10

180302C91

BALL BEARING,22.28mm Hex x 52mm OD x 25.4mm W

7/8" hex bore .047 od FAFNIR #205KRR2

2шт.

11

102254A1

SPACER

CLUTCH

1шт.

12

91807C1

BRUSH HOLDER

HARNESS, HOLDER

1шт.

13

1253726C1

ELECTRICAL WIRE

WIRE 16 gauge 6" long with ends

1шт.

14

1253728C1

ELECTRICAL WIRE

WIRE 16 gauge 4" long with ends

1шт.

15

86624147

WASHER,0.53" ID x 1.5" OD x 0.12" Thk

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

17

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

4шт.

18

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

2шт.

19

102105A1

SHAFT

hex 7/8" x 12.8" long

1шт.

20

86624087

PIN,1/4" x 1 3/4", Coiled

3шт.

21

222680C1

CLIP

1шт.
