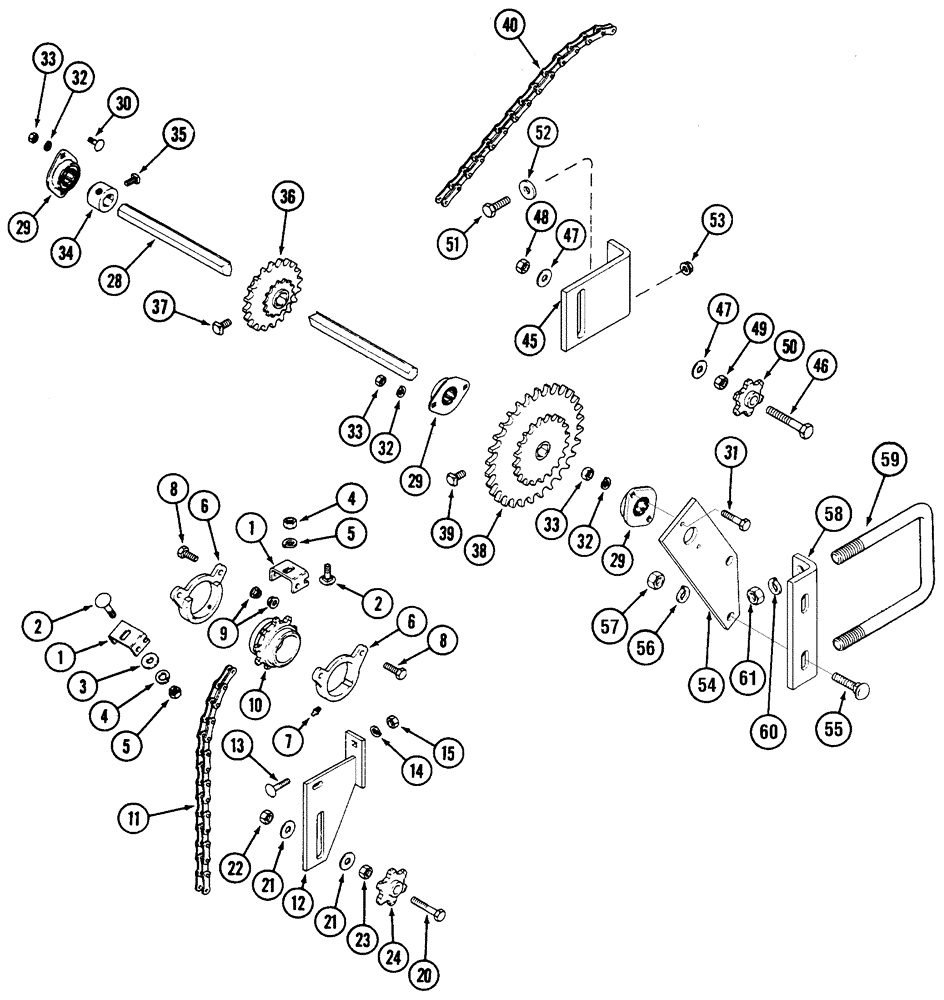

Запчасти Case IH 5500 (9-22) - SEED DRIVE (09) - CHASSIS

1

91262C1

BRACKET

hopper drive sprocket

4шт.

2

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

5

9628503

NUT,3/8"-16, G5

4шт.

6

817458C1

HANGER

4шт.

7

87414

LUBE NIPPLE,1/4" - 28

4шт.

8

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

9

9823743

FLANGE NUT,Flg, 5/16"-18

8шт.

10

817457C1

SPROCKET

9 tooth, double pitch

2шт.

11

REF

INSTRUCTION

CHAIN ASSY., Countershaft Drive

1шт.

Use 33 links from roll 569089R91 plus 1 connecting link 1277928C91 and 1 offset link 242-1710

1шт.

12

1279941C1

BRACKET

idler

2шт.

13

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

15

9628503

NUT,3/8"-16, G5

2шт.

20

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

21

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

22

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

23

86632556

JAM NUT,Jam, 5/8"-11, G5

2шт.

24

819457C1

SPROCKET

6 tooth, plastic

2шт.

28

90938C1

BAR

hex 7/8" x 87 7/8" long

2шт.

29

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

6шт.

30

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

31

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

32

80681

LOCK WASHER,5/16"

12шт.

33

9635082

NUT,5/16" - 18, Gr 5

12шт.

34

87461085

SPROCKET

collar locking

12шт.

35

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

8шт.

36

1279892C1

SPROCKET

12 tooth and 24 tooth assembly

2шт.

37

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

4шт.

38

1279893C1

SPROCKET

22 tooth and 44 tooth assembly

2шт.

39

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

4шт.

40

REF

INSTRUCTION

CHAIN ASSY., Feedshaft Drive

1шт.

Use 19 links from roll 569089R91 plus 1 connecting link 1277928C91 and 1 offset link 242-1710

1шт.

45

1973174C1

PLATE

BAR, DRIVE IDLER, Serial Range: -CKB0030001

2шт.

Single welded 2 bearing support and idler mount replaced with 123082A2 bracket, 222498A1 angle and 222497A1 bar plus attaching hardware, items 59-66

1шт.

45

1973174C2

BRACKET

idler drive, Years: -01-MAR-07

2шт.

45

87632922

BRACKET

idler drive, Start Year: 01-MAR-07

2шт.

46

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

2шт.

47

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

48

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

49

86632556

JAM NUT,Jam, 5/8"-11, G5

2шт.

50

819457C1

SPROCKET

6 tooth, plastic

2шт.

51

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

52

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

53

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

54

1986305C1

BAR

bearing support OAL=306 mm

2шт.

54

222496A1

BAR

plate bearing support OAL=285 mm

2шт.

55

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

4шт.

56

12034871

WASHER

5/8"

4шт.

57

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

58

222498A1

ANGLE

adj bracket seed drive mount l 37 e

2шт.

59

133351A1

U-BOLT,1/2" - 13 x 179.20mm W x 210mm L

us 1/2"-13 7" wide x 8 1/4" deep with 1 3/8" thread

2шт.

60

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

61

280431

NUT,1/2"-13, G5

4шт.
