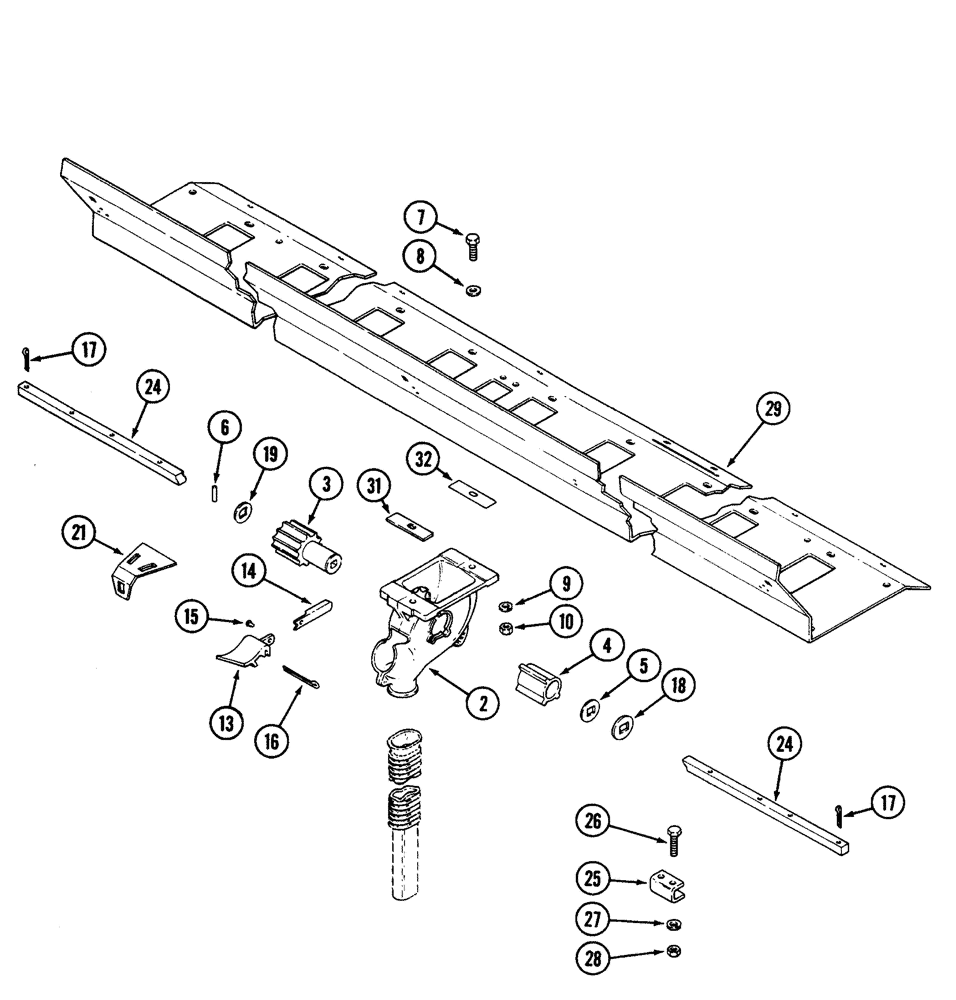

Запчасти Case IH 5500 (9-20) - SEED FEED (ASN CKB0030001) (09) - CHASSIS

0

603816R93

CUP

fluted feed service

1шт.

0

8-27510

INSTRUCTION

card, fluted feed cup

1шт.

2

NSS

NOT SOLD SEPARAT

CUP, Feed

1шт.

3

603111R1

ROLLER

fluted

1шт.

4

603112R1

BLOCK

shut off plain

1шт.

5

602106R1

SQ HOLE WASHER

.656 sq id 1.17 pln x .0097 tk

4шт.

6

603134R1

PIN,4.76mm OD x 29.37mm L

3/16" x 1 5/32" long

1шт.

7

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

8

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

1шт.

9

80681

LOCK WASHER,5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

1шт.

13

603108R21

BOTTOM

assembly, feed cup dump

1шт.

14

603178R1

LATCH

bracket bottom dump

1шт.

15

49-36

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

16

432-1248

COTTER PIN,3/16" x 3"

1шт.

17

394818

COTTER PIN,M5 x 25

1шт.

18

N11720

WASHER

square 21/32" id x 1 1/2" od x 3/32" thick

1шт.

18

602106R1

SQ HOLE WASHER

.656 sq id 1.17 pln x .0097 tk

1шт.

19

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

spring 21/32" sq id

1шт.

21

606034R1

GUARD

WINDSHIELD, GRAIN FEED CUP

1шт.

24

352922A1

BAR

shaft square 5/8" x 81.7" with holes RH 24 row x 7.5" spacing

2шт.

24

352919A1

BAR

shaft square 5/8" x 85.3" with holes LH 24 row x 7.5" spacing

2шт.

24

352917A1

BAR

shaft square 5/8" x 81.7" with holes RH 18 row x 10" spacing

2шт.

24

352915A1

BAR

shaft square 5/8" x 85.3" with holes LH 18 row x 10" spacing

2шт.

25

816133C1

CHANNEL

feed shaft coupler

2шт.

26

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

27

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

28

9628503

NUT,3/8"-16, G5

1шт.

29

349466A1

BOTTOM

SECTION, GRAIN 24X7.5

2шт.

29

349467A1

BOTTOM

SECTION, GRAIN 18X10

2шт.

31

90987C1

BAR

FEED CUP SPACER FRT

1шт.

32

90988C1

BAR

FEED CUP SPACER RR

1шт.
