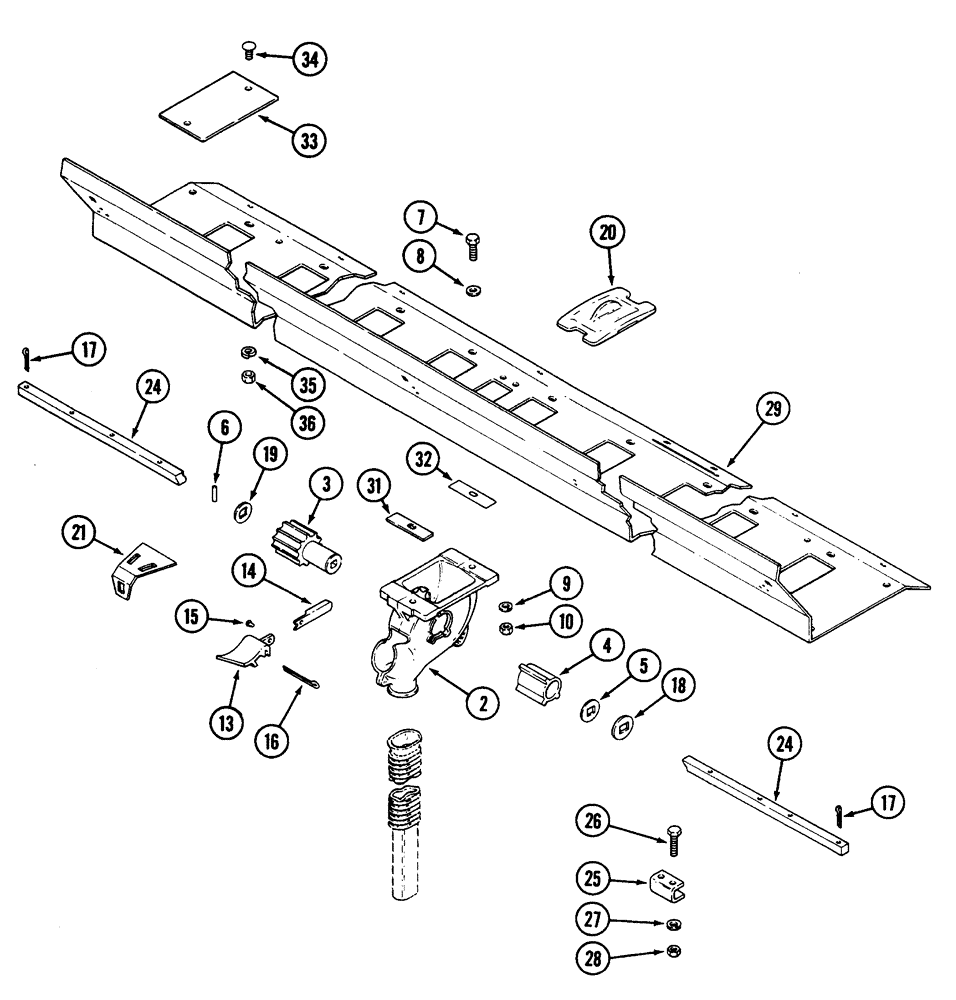

Запчасти Case IH 5500 (9-18) - SEED FEED (BSN CKB0030000) (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
0
603816R93
CUP
fluted feed service
1шт.
0
8-27510
INSTRUCTION
card, fluted feed cup
1шт.
2
NSS
NOT SOLD SEPARAT
CUP, Feed
1шт.
3
603111R1
ROLLER
fluted
1шт.
4
603112R1
BLOCK
shut off plain
1шт.
5
602106R1
SQ HOLE WASHER
.656 sq id 1.17 pln x .0097 tk
4шт.
6
603134R1
PIN,4.76mm OD x 29.37mm L
3/16" x 1 5/32" long
1шт.
7
87657
BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5
1шт.
8
495-81114
WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk
1шт.
9
80681
LOCK WASHER,5/16"
1шт.
10
9635082
NUT,5/16" - 18, Gr 5
1шт.
13
603108R21
BOTTOM
assembly, feed cup dump
1шт.
14
603178R1
LATCH
bracket bottom dump
1шт.
15
49-36
RIVET,Truss Hd, 3/16" x 3/8"
1шт.
16
432-1248
COTTER PIN,3/16" x 3"
1шт.
17
394818
COTTER PIN,M5 x 25
1шт.
18
N11720
WASHER
square 21/32" id x 1 1/2" od x 3/32" thick
1шт.
18
602106R1
SQ HOLE WASHER
.656 sq id 1.17 pln x .0097 tk
1шт.
19
603231R1
SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk
spring 21/32" sq id
1шт.
20
818335C1
COVER ASSY
GRAIN FEED SHUT OFF
1шт.
21
606034R1
GUARD
WINDSHIELD, GRAIN FEED CUP
1шт.
24
91007C1
BAR
FEED SHAFT RH
2шт.
24
90932C1
BAR
FEED SHAFT LH
2шт.
24
91008C1
BAR
feed shaft 22 x 8 RH
2шт.
24
90933C1
BAR
FEED SHAFT LH
2шт.
24
91009C1
BAR
square 5/8" x 75 11/16" long
2шт.
24
90934C1
BAR
square 5/8" x 95 1/4" long
2шт.
25
816133C1
CHANNEL
feed shaft coupler
2шт.
26
88044
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
4шт.
27
80680
LOCK WASHER,3/8 0.381 CST ZND
1шт.
28
9628503
NUT,3/8"-16, G5
1шт.
29
90935C3
BOTTOM
grain partition, 26 x 7
2шт.
29
90937C3
ASSEMBLY
SECTION, GRAIN BOTTOM PARTITION (18X10), Start Serial: CKB0030001
2шт.
31
90987C1
BAR
FEED CUP SPACER FRT
1шт.
32
90988C1
BAR
FEED CUP SPACER RR
1шт.
33
1986019C1
COVER
HOLE
4шт.
34
280497
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd
8шт.
35
80681
LOCK WASHER,5/16"
8шт.
36
9635082
NUT,5/16" - 18, Gr 5
8шт.
Выбрано товаров: 39
