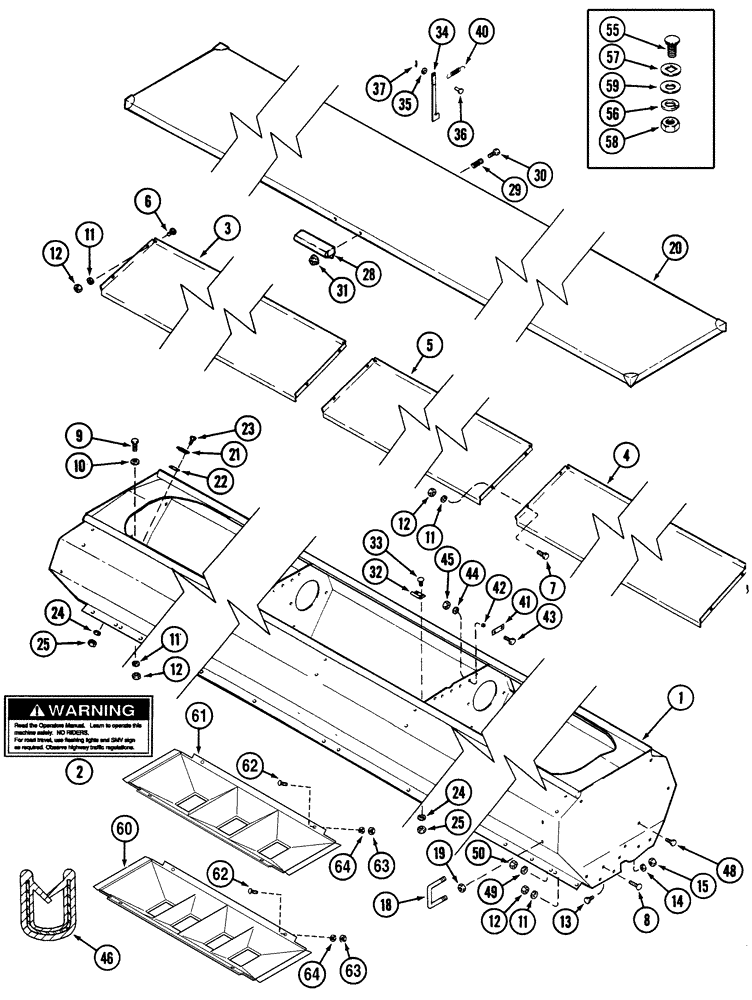

Запчасти Case IH 5500 (9-12) - HOPPER (09) - CHASSIS

1

97766C3

HOPPER

W/DECAL, No Longer Availavle, Order: 97766C5 Hopper Assembly Below, Serial Range: -CKB0030001

2шт.

1

97766C5

HOPPER

W/DECAL, Serial Range: CKB0030001-CBJ0012318

2шт.

1

97766C6

HOPPER

with decal, Start Serial: CBJ0012319

2шт.

2

220321A1

WARNING DECAL

Non-Power Implement

1шт.

3

90948C1

PANEL

outer LH

2шт.

4

90949C1

PANEL

outer RH

2шт.

5

815832C1

PANEL

center partition

2шт.

6

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

7

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

8шт.

8

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

10

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

16шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

12

9628503

NUT,3/8"-16, G5

1шт.

13

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

12шт.

14

80682

LOCK WASHER,1/4"

12шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

12шт.

18

811627C2

U-BOLT

us 5/8" 5"w 3 1/2"d

4шт.

19

280374

NUT,Hex, 5/8" - 11, Gr 5

16шт.

20

90931C1

COVER

hopper 15', Years: -01-JAN-10

2шт.

21

815173C1

HINGE

bracket grain lid

14шт.

20

84286041

LID

Hopper 15', Start Year: 01-JAN-10

1шт.

22

97620C1

SHIM

hinge

14шт.

23

470-12516

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

28шт.

24

80682

LOCK WASHER,1/4"

1шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

28

815174C1

LATCH

grain box lid black

2шт.

29

N32176

SPRING

C .072" wire x .594" od x 3/4" long

4шт.

30

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

31

281010

LOCK NUT,7/8"-14, GC

4шт.

32

815175C1

CLIP

bracket lid latch

4шт.

33

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

34

815176C1

ARM

brace lid prop

4шт.

35

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

12шт.

36

427-5071

CLEVIS PIN,7.92mm OD x 18.26mm L

4шт.

37

88788

COTTER PIN,3/32" x 1/2"

4шт.

40

398304R1

SPRING

E .051 wire .313 OD 2.14

4шт.

41

815178C1

SPACER

hold lid

4шт.

42

594536R1

BUSHING

3/8"id x 1/2"od x 5/16"lg

8шт.

43

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

44

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

45

9628503

NUT,3/8"-16, G5

8шт.

46

NSS

NOT SOLD SEPARAT

MOULDING, Protective Guard, Order: 1330108CX, Cut To Length

1шт.

48

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

49

80681

LOCK WASHER,5/16"

8шт.

50

9635082

NUT,5/16" - 18, Gr 5

8шт.

55

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

56

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

57

498-81005

SQ HOLE WASHER,13.49mm ID x 25.4mm OD x 1.52mm Thk

4шт.

58

280431

NUT,1/2"-13, G5

4шт.

59

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

8шт.

60

322912A1

FUNNEL

HOPPER BOTTOM, Start Serial: CKB0030001

4шт.

60

351148A1

BAFFLE

funnel hopper 7 1/2" spacing 15'

8шт.

61

355383A2

FUNNEL

hopper 10" spacing 10', Start Serial: CKB0030001

4шт.

61

351149A1

BAFFLE

funnel hopper 10" spacing 15', Start Serial: CKB0030001

8шт.

62

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

32шт.

63

7770

NUT,Hex, 1/4 - 20, Cl 5

32шт.

64

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

32шт.
