Запчасти Case IH 5500 (9-08) - HOPPER SUPPORTS AND FOOTBOARDS (BSN CKB0030000) (09) - CHASSIS

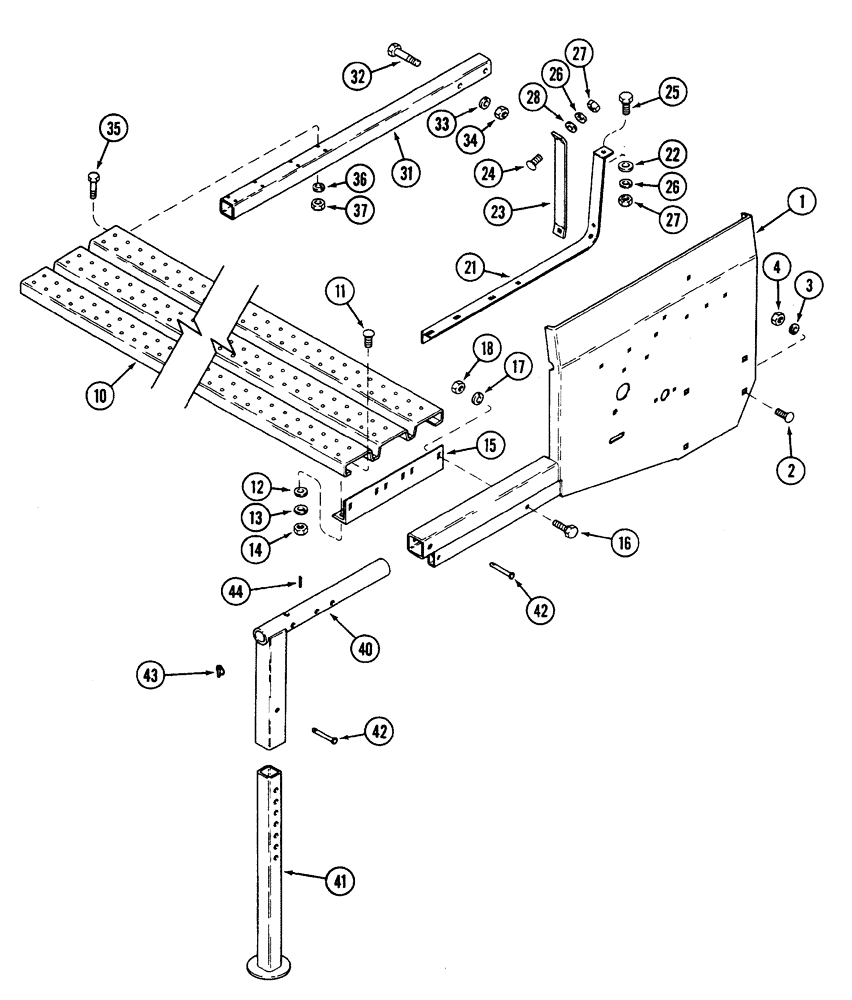

Схема запчастей Case IH 5500 - (9-08) - HOPPER SUPPORTS AND FOOTBOARDS (BSN CKB0030000) (09) - CHASSIS
40
31
34
15
17
24
1
26
18
37
3
27
28
32
21
4
42
10
12
42
35
27
36
23
33
22
11
26
13
25
41
43
16
14
2
44

Артикул

Название

Примечание

Количество

1

90818C3

BRACKET

end assembly LH

1шт.

1

90819C3

BRACKET

end assembly RH

2шт.

2

280832

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5, Full Thd

16шт.

3

12034871

WASHER

5/8"

16шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

16шт.

10

817420C4

FOOT REST

SECTION, FOOTBOARD - 14.5 FT.

2шт.

11

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

32шт.

12

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

28шт.

13

80681

LOCK WASHER,5/16"

32шт.

14

9635082

NUT,5/16" - 18, Gr 5

32шт.

15

1279695C1

ANGLE

footboard

2шт.

16

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

8шт.

17

80681

LOCK WASHER,5/16"

8шт.

18

9635082

NUT,5/16" - 18, Gr 5

8шт.

21

1279896C2

SUPPORT

ASSY, FOOTBOARD - LONG

4шт.

22

495-81132

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

4шт.

23

1279899C1

BRACKET

Brace flat

4шт.

24

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

25

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

26

80680

LOCK WASHER,3/8 0.381 CST ZND

12шт.

27

9628503

NUT,3/8"-16, G5

12шт.

28

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

4шт.

31

1337072C1

TUBE,993 mm Length

FOOTBOARD SUPPORT

2шт.

32

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

34

280431

NUT,1/2"-13, G5

4шт.

35

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

8шт.

36

80681

LOCK WASHER,5/16"

8шт.

37

9635082

NUT,5/16" - 18, Gr 5

8шт.

40

1986446C2

SUPPORT

ASSY, UPPER

2шт.

41

1279976C2

SUPPORT

lower stand

2шт.

42

86979987

HEADED PIN,1/2" x 3", G5

4шт.

43

A33497

LINCH PIN,4.76mm OD Pin

Klik

2шт.

44

394818

COTTER PIN,M5 x 25

2шт.

Выбрано товаров: 34
