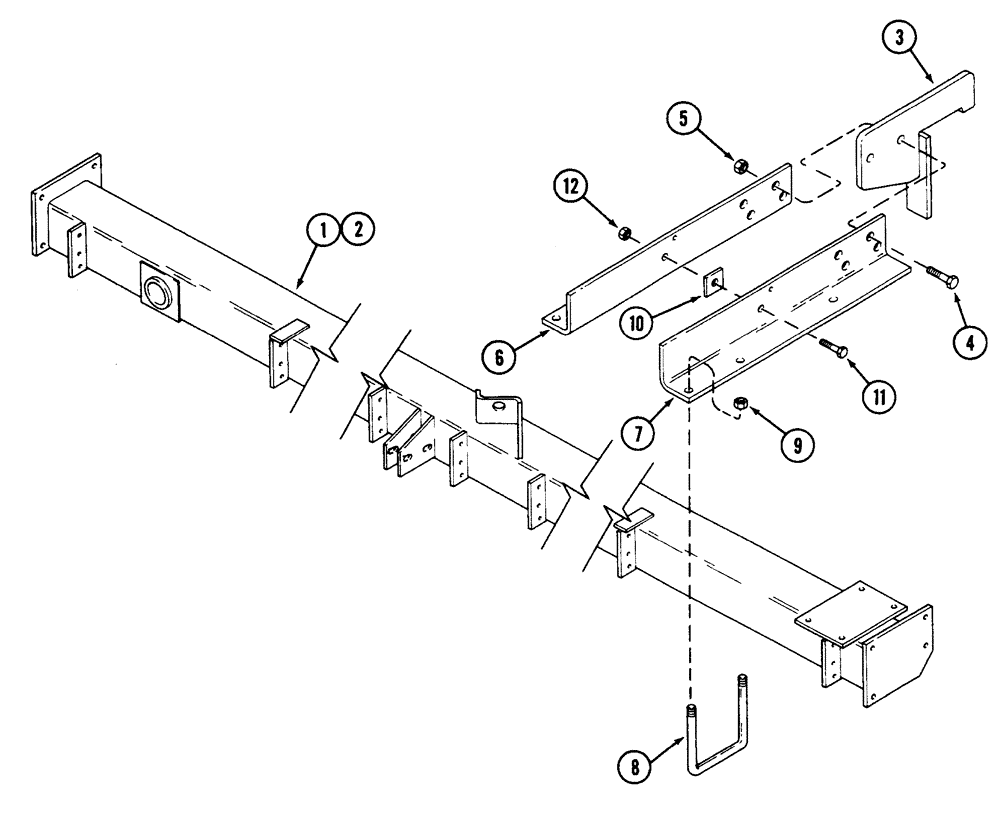

Запчасти Case IH 5500 (9-06) - WING FRAME AND LATCH (09) - CHASSIS

1

1973275C2

FRAME ASSY

30 FT. DRILL - LH, Serial Range: -CKB0030001

1шт.

1

352936A1

FRAME

30' LH

1шт.

2

1973276C2

FRAME ASSY

30 FT. DRILL - RH, Serial Range: -CKB0030001

1шт.

2

352937A1

FRAME

30' RH

1шт.

3

1973360C2

LATCH

assembly

2шт.

4

84128

BOLT,Hex, 1" x 3", Gr 5

4шт.

5

9849633

NUT,1"-8, G5

4шт.

6

1973363C2

ANGLE

latch support LH

2шт.

7

1973364C2

ANGLE

latch support RH

2шт.

8

493841R1

U-BOLT

us 7/8"-9 7" w 8 1/2" d 1 3/8" thread

4шт.

9

9849647

NUT,7/8"-9, G5

4шт.

10

1986084C1

BAR

spacer

4шт.

11

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

2шт.

12

280954

NUT,3/4"-10, G5

2шт.
