(8-30) - MARKER CONTROL VALVE (BSN CBJ025391)

Запчасти Case IH 5500 (8-30) - MARKER CONTROL VALVE (BSN CBJ025391) (08) - HYDRAULICS

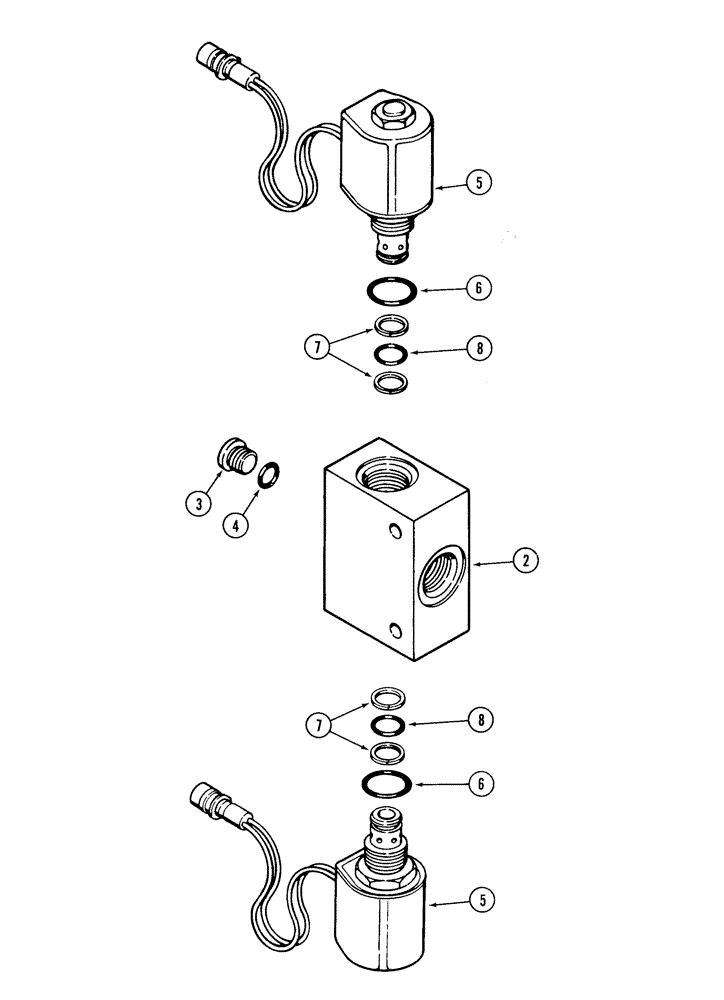

Схема запчастей Case IH 5500 - (8-30) - MARKER CONTROL VALVE (BSN CBJ025391) (08) - HYDRAULICS
5
7
4
6
7
3
8
2
8
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

149988C92

VALVE

assembly

1шт.

2

145317C2

VALVE BODY

assembly

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG, Valve Body

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING, Plug

1шт.

Included in seal kit 145316C1

1шт.

5

149989C91

VALVE

solenoid

2шт.

6

NSS

NOT SOLD SEPARAT

O-RING, Solenoid Valve

2шт.

Included in seal kit 145316C1

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER, Solenoid Valve Backup

4шт.

Included in seal kit 145316C1

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

Included in seal kit 145316C1

1шт.

100

145316C1

REPAIR KIT

seal, valve assembly

1шт.
