Запчасти Case IH 5500 (8-20) - MARKER LIFT CYLINDER, 841038C91 (1ST DATE RANGE) (08) - HYDRAULICS

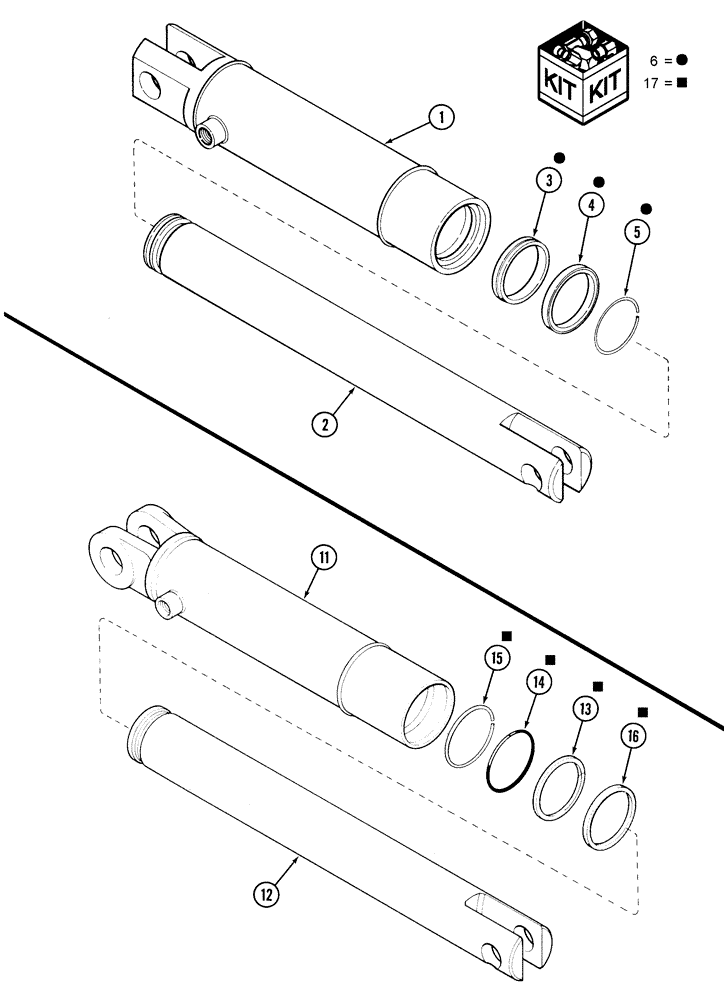

Схема запчастей Case IH 5500 - (8-20) - MARKER LIFT CYLINDER, 841038C91 (1ST DATE RANGE) (08) - HYDRAULICS
16
13
15
1
3
4
6
12
2
5
14
11
17

Артикул

Название

Примечание

Количество

0

841038C91

CYLINDER ASSY.

CESSNA 2 X 8, No Longer Available, Order: 1345980C1 Cylinder

1шт.

0

145622C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 204.7mm Stroke

2" x 8"

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, Cylinder

1шт.

2

843146C1

ROD

PISTON

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL, Rod

1шт.

Included in repair kit 843147C1

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER, Rod

1шт.

Included in repair kit 843147C1

1шт.

5

NSS

NOT SOLD SEPARAT

RING, Retaining

1шт.

Included in repair kit 843147C1

1шт.

6

843147C1

SEAL KIT

cylinder service

1шт.

11

145621C1

HYD TUBE

cylinder

1шт.

12

149611C1

PISTON ROD

1шт.

13

387399R2

RING

back-up

1шт.

Seal kit 145682C1 no longer available, order component

1шт.

14

86632689

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2" x 2 3/8" class 6

1шт.

Seal kit 145682C1 no longer available, order component

1шт.

15

145628C1

RING

rod retainer

1шт.

Seal kit 145682C1 no longer available, order component

1шт.

16

59741C1

WIPER SEAL

seal, rod

1шт.

Seal kit 145682C1 no longer available, order component

1шт.

17

145682C1

SEALING RING

cylinder

1шт.

Выбрано товаров: 22
