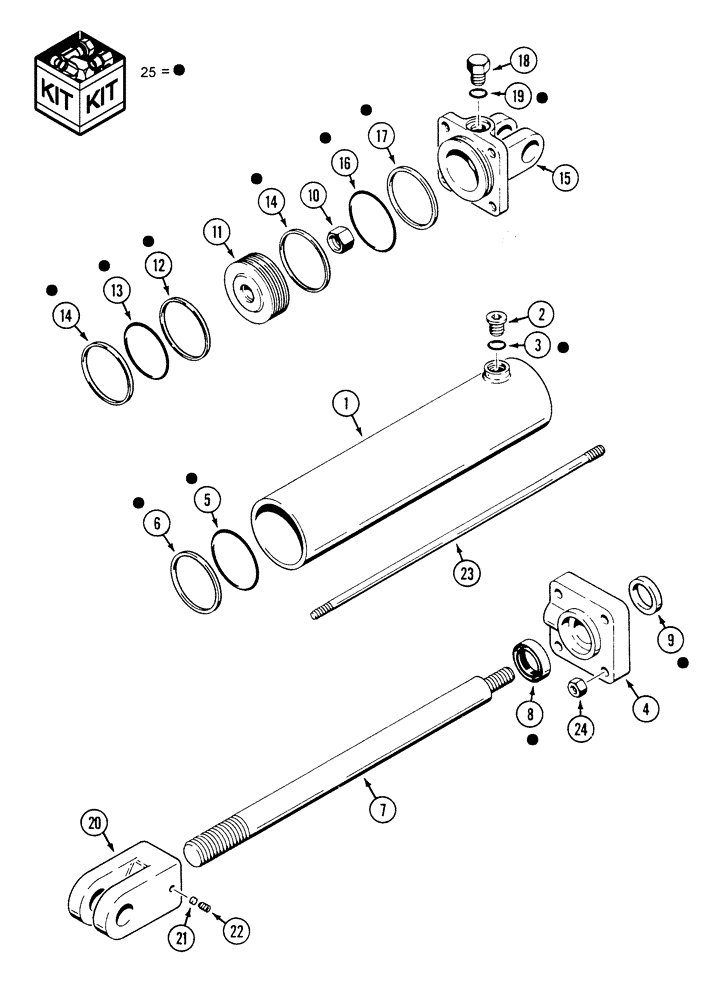

Запчасти Case IH 5500 (8-16) - HYDRAULIC CYLINDER, 1282326C92, DRIVE/GAUGE WHEEL LIFT AND CART WHEEL LIFT (1ST DATE RANGE) (08) - HYDRAULICS

0

1282326C92

HYDRAULIC CYLINDER

3 1/2" x 16" 3000 psi, no pins, Years: -31-DEC-03

4шт.

1

1978385C1

HYD TUBE

ASSY

1шт.

2

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING, 41/64 ID x 3/32 Inch Wide, Plug

1шт.

Included in repair kit 79978C2

1шт.

4

386764A1

CYLINDER BLOCK

HEAD, CYL FRONT

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING, 3-3/4 ID x 4 in. OD, Gland

1шт.

Included in repair kit 79978C2

1шт.

6

NSS

NOT SOLD SEPARAT

RING, Backup, Gland O-ring

1шт.

Included in repair kit 79978C2

1шт.

7

1282397C1

PISTON ROD

1шт.

8

NSS

NOT SOLD SEPARAT

Soc Hd or Boss 3/4-16

1шт.

Included in repair kit 79978C2

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL, Piston Rod

1шт.

Included in repair kit 79978C2

1шт.

10

281010

LOCK NUT,7/8"-14, GC

1шт.

11

85179C1

PISTON

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL, Piston

1шт.

Included in repair kit 79978C2

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING, 3-1/2 ID x 3-11/16 OD, Backup, Piston Seal

1шт.

Included in repair kit 79978C2

1шт.

14

NSS

NOT SOLD SEPARAT

RING, Wear, Piston

2шт.

Included in repair kit 79978C2

1шт.

15

1282334C1

HEAD

HYD CYLINDER REAR W/2 PORTS

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING, 3-3/4 ID x 4 in. OD, Cylinder Head

1шт.

Included in repair kit 79978C2

1шт.

17

NSS

NOT SOLD SEPARAT

RING, Backup, Cylinder Head O-ring

1шт.

Included in repair kit 79978C2

1шт.

18

214389

PLUG,3/4" - 16 ORB

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING, 41/64 ID x 3/32 in. Wide

1шт.

Included in repair kit 79978C2

1шт.

20

145240C1

CLEVIS,1 -1/2" - 12

end, rod

1шт.

21

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

22

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

23

1282287C1

TIE-ROD,1/2" - 13 x 28.656"

BOLT, HYD CYL TIE

4шт.

24

280431

NUT,1/2"-13, G5

4шт.

25

79978C2

SEAL KIT

cylinder repair

1шт.
