Запчасти Case IH 5500 (8-04) - HYDRAULIC LIFT SYSTEM, CART WHEEL CIRCUIT (08) - HYDRAULICS

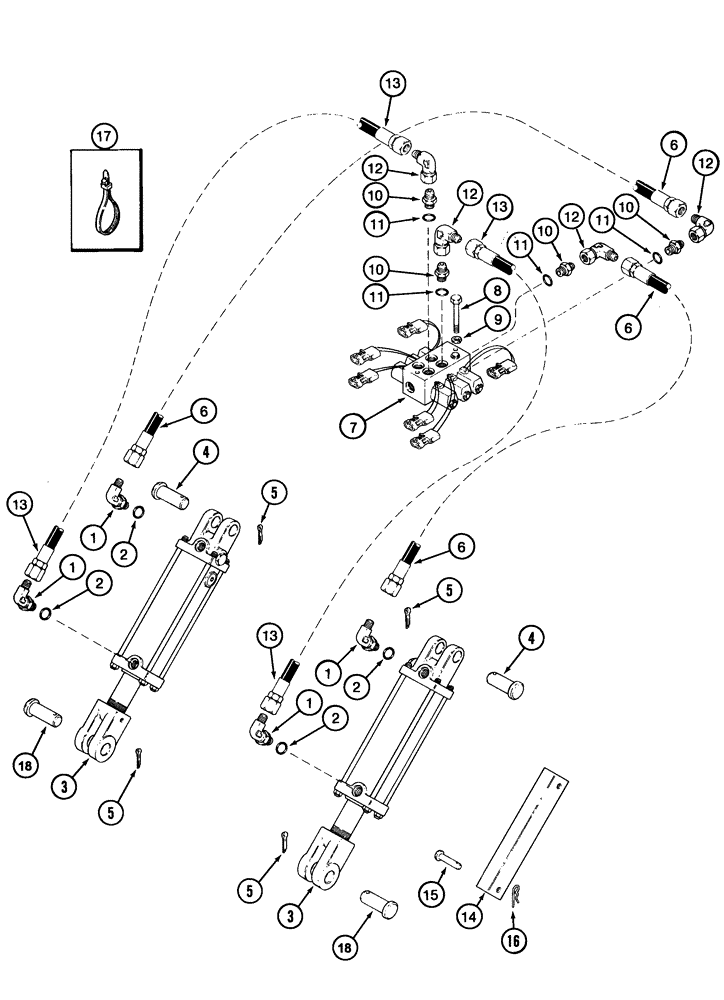

Схема запчастей Case IH 5500 - (8-04) - HYDRAULIC LIFT SYSTEM, CART WHEEL CIRCUIT (08) - HYDRAULICS
1
11
10
6
2
5
18
6
6
1
12
6
10
13
2
12
14
3
5
4
2
2
11
17
7
9
3
13
18
16
12
11
5
10
15
1
8
10
4
1
5
13
11
13
12

Артикул

Название

Примечание

Количество

1

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

4шт.

2

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

1282326C92

HYDRAULIC CYLINDER

3 1/2" x 16" 3000 psi, no pins, Years: -31-DEC-03

2шт.

3

86991623

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 1/2" x 16" 3000 psi, no pins, Start Year: 01-JAN-04

2шт.

4

145282C1

CLEVIS PIN

hardened 31.52mm x 84mm long

2шт.

5

88182

COTTER PIN,1/4" OD x 2" L

4шт.

6

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

3/8" x 19" fl

2шт.

7

93188C1

VALVE

hyd 2 way solenoid

1шт.

7

86508168

SEAL KIT

Relief Valve

1шт.

7

93209C1

KIT

solenoid

1шт.

7

87436627

VALVE

assembly 2 way cartridge

1шт.

8

84192885

BOLT

Hex, 3/8"-16 x 3 3/4", G5

2шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

10

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

4шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

4шт.

13

129672C2

HYDRAULIC HOSE

3/8" x 39" fl

2шт.

14

1960428C1

STOP

channel cylinder

1шт.

15

439-1644

HEADED PIN,3/8" x 2 3/4"

2шт.

16

1978737C1

COTTER PIN,Int, 1/8" x 49mm

3 mm x 49 mm

2шт.

17

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

18

87501610

HEADED PIN

31.5 mm x 80.13 mm ul

2шт.

Выбрано товаров: 22
