Запчасти Case IH 5400 (4-02) - ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

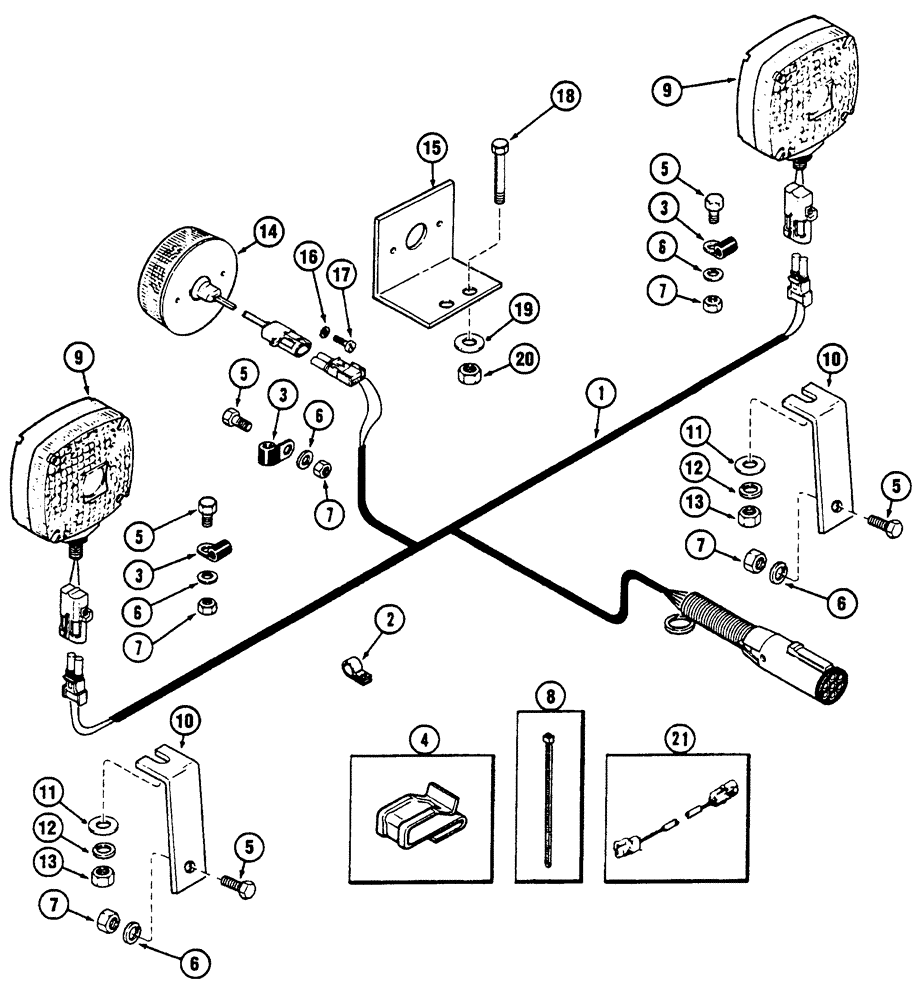

Схема запчастей Case IH 5400 - (4-02) - ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS
6
3
3
6
5
7
1
9
13
21
20
5
10
5
12
17
6
5
19
16
6
7
5
7
10
4
18
9
12
15
11
11
3
2
13
6
7
7
8
14

Артикул

Название

Примечание

Количество

1

92061C1

HARNESS

safety lights, grain drill

1шт.

2

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

2шт.

3

366460R1

CABLE CLIP

j 1/4" short

8шт.

4

92144C1

CABLE CLIP

.025-.055

26шт.

5

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

6шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

7

9628503

NUT,3/8"-16, G5

6шт.

8

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

10шт.

9

192052A1

REPAIR KIT

warning light (2 wire), Years: -01-SEP-05

2шт.

Shown

1шт.

9

87564157

WARNING LIGHT

assembly amber, Start Year: 01-OCT-05

2шт.

Not Shown

1шт.

10

323796A1

BRACKET

warning light

1шт.

11

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

13

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

14

91986C91

LIGHT

tail, red

1шт.

15

323887A1

BRACKET

tail light

1шт.

16

87016542

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

18

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

19

80681

LOCK WASHER,5/16"

2шт.

20

9635082

NUT,5/16" - 18, Gr 5

2шт.

21

92094C1

HARNESS

CABLE

1шт.

21

92095C1

HARNESS

1.1 m 16 awg 2 connector Packard

1шт.

21

92096C1

CABLE ASSY.

lamp, extension 3000mm (118") long

1шт.

21

92097C1

HARNESS

safety lighting

1шт.

21

92098C1

HARNESS

5.05 m 16 awg 2 connector Packard

1шт.

17

493-81000

LOCK WASHER,Ext-Int Tooth, #10

2шт.

Выбрано товаров: 28
