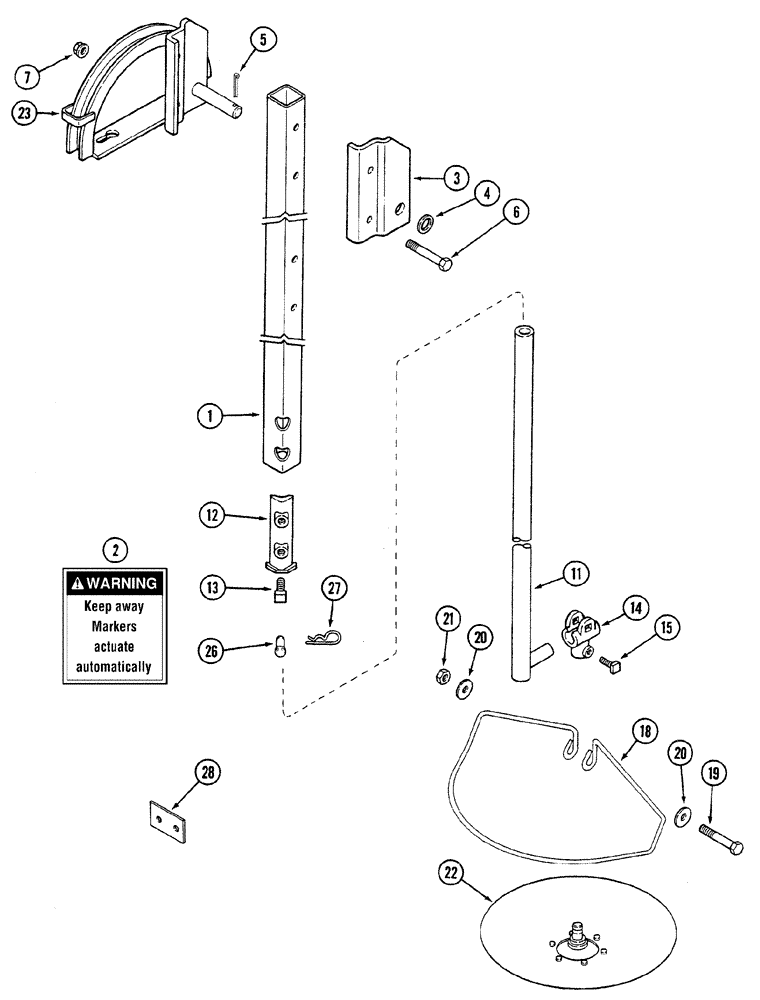

Запчасти Case IH 5400 (9-48) - DISC MARKER, FOLDING (09) - CHASSIS

1

1254413C92

TUBE

W/DECAL

2шт.

2

1254154C2

WARNING DECAL

1шт.

3

100222C1

SUPPORT

plate, marker bracket LH

1шт.

3

113041C1

SUPPORT

plate, marker bracket RH

1шт.

4

86624165

WASHER,0.91" ID x 1.25" OD x 0.06" Thk

2шт.

5

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

6

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

7

86992215

LOCK NUT,1/2"-13, GC

4шт.

11

100226C1

TUBE

2шт.

12

1264424C1

STOP

Block, Marker

2шт.

13

86512815

SET SCREW,Sq Hd, 1/2" - 13 x 1 1/4", Cup Pt

set 1/2"-13 x 1 1/4" sh cp

4шт.

14

97741C1

PIVOT

clamp axle

2шт.

15

87616

SET SCREW,3/8" - 16 x 3/4"

2шт.

18

113223C1

GUARD

disk

2шт.

19

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

20

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

21

86992215

LOCK NUT,1/2"-13, GC

2шт.

22

1337981C2

DISC

assembly - marker

2шт.

22

1264358C1

DISC,13"

assembly, marker

2шт.

22

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

22

9635082

NUT,5/16" - 18, Gr 5

6шт.

22

80681

LOCK WASHER,5/16"

6шт.

23

100219C1

PULLEY

bracket LH

1шт.

23

100220C1

PULLEY

bracket RH

1шт.

26

86624065

HEADED PIN,3/4" x 7/8", G2

4шт.

27

1970957C1

SPRING

PIN, HAIR (SPRING)

4шт.

28

1976546C1

BAR

MARKER BUMPER BACKUP

2шт.
