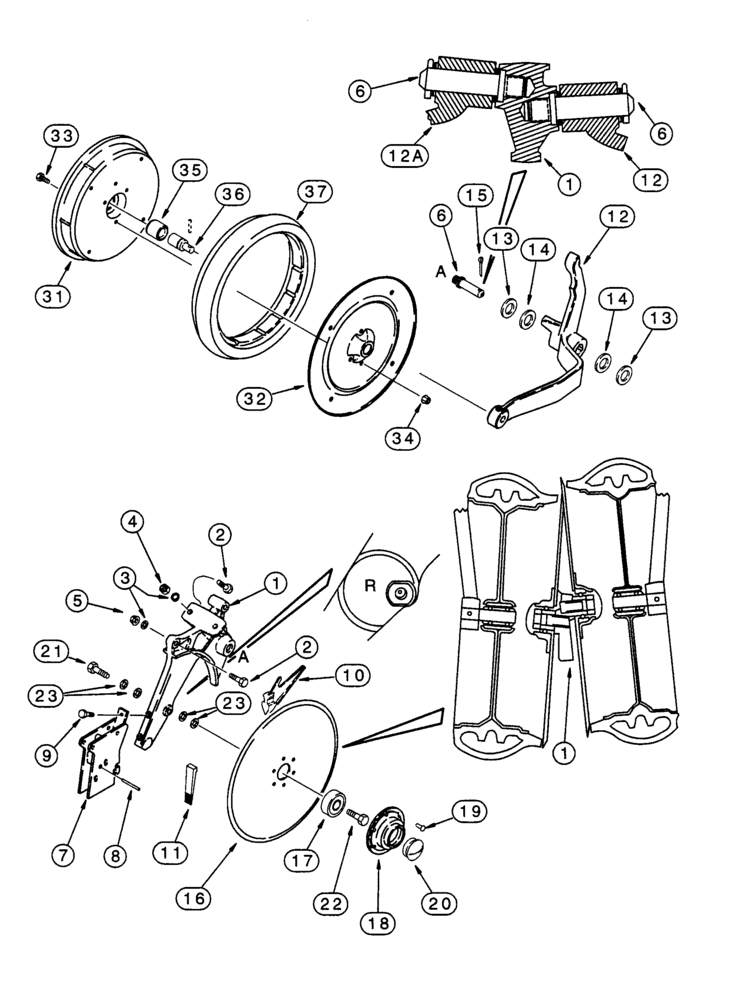

Запчасти Case IH 5400 (9-36) - DISC OPENER AND GAUGE WHEEL WITH RIGHT-HAND LEADING DISC OPENER (ON LEFT-HAND SIDE OF DRILL) (09) - CHASSIS

1

142865A1

SUPPORT

cast opener RH

1шт.

2

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

280431

NUT,1/2"-13, G5

2шт.

5

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

6

175598A1

PIN,25.4mm OD x 120mm L

flanged 1" od hardened with 1"-12 threaded end

2шт.

7

1277777C1

SHOE (ASSY)

DOUBLE DISK OPENER

1шт.

8

87524

LOCK PIN,6.35mm OD x 34.92mm L, Slotted

2шт.

9

1263977C1

BOLT

lk 3/8"-16 x 3/4", G8 with chemical lock

2шт.

10

436702A1

POINT

cast furrow point, complete

1шт.

11

140817C1

DEFLECTOR

seed

1шт.

12

436711A1

ARM

cast gauge wheel RH

1шт.

12a

436710A1

ARM

gauge wheel LH

1шт.

13

86624173

WASHER,1.09" ID x 1.5" OD x 0.06" Thk

4шт.

14

86624174

WASHER,1.09" ID x 1.5" OD x 0.12" Thk

6шт.

15

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

16

90851C92

DISC

OPENER ASSY, 14" STD TRAILING - Includes disc, bearing and rivets

1шт.

16

90850C92

DISC

OPENER ASSY, 14" STD LEADING, Includes disc, bearing and rivets

1шт.

16

1337971C1

DISC

355.6 mm x 3.5 mm 6-hole opener/square

1шт.

17

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball 1.78 x .73 x .62 id

1шт.

17

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

18

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

bearing retainer

1шт.

19

86624111

RIVET,6.35mm OD x 14.29mm L

6шт.

20

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing

2шт.

21

86632533

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, LH, Full Thd

1шт.

22

88706

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

23

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

21/32" id x 1" od x .054 hardened

1шт.

30

228886A2

WHEEL ASSY

gauge narrow 2 3/4" nylon/steel

2шт.

30

86624088

PIN,6.35mm OD x 50.8mm L

1шт.

31

249935A1

WHEEL

nylon gauge, Years: -01-SEP-06

1шт.

31

87604612

WHEEL

black steel half, 16" cleaner wheel, Start Year: 01-OCT-06

1шт.

32

141678A1

RIM

WHEEL disc, gauge wheel for 3.2" assembly

1шт.

33

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

7шт.

34

145458

SERRATED NUT,5/16"-18 GR 5 ZND

7шт.

35

133966C1

BUSHING,29.94mm ID x 39.95mm OD x 39mm L

sleeve

1шт.

36

128558C91

BALL BEARING,30mm OD x 75mm L

gauge wheel

1шт.

37

194063A1

TYRE/TIRE

3.2" x 16" gauge wheel, Years: -01-SEP-06

1шт.

37

87602561

TYRE/TIRE

3 x 16 narrow gauge, Start Year: 01-OCT-06

1шт.
