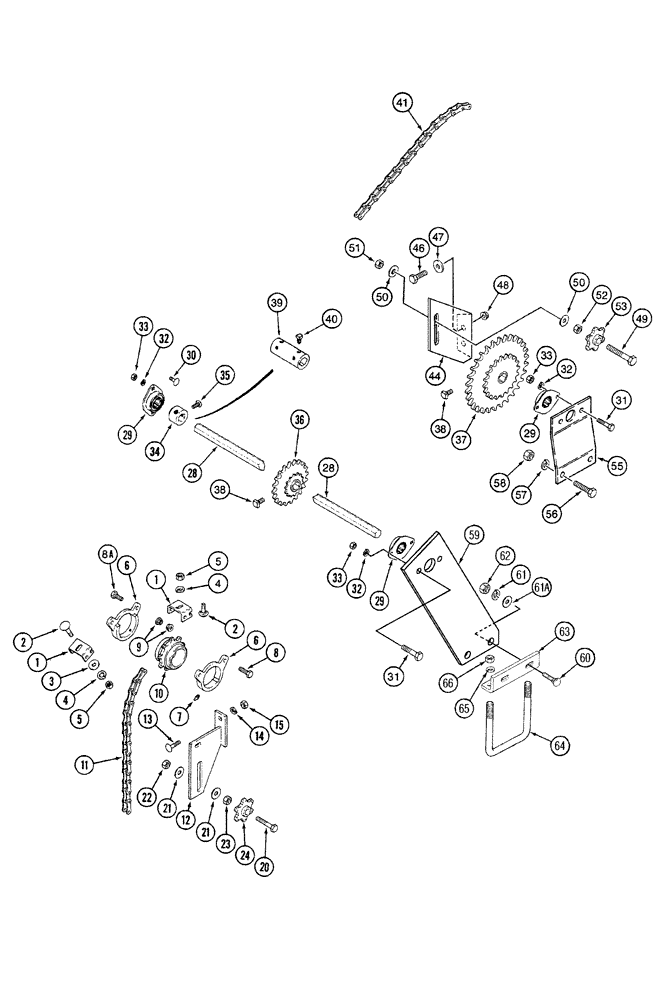

Запчасти Case IH 5400 (9-20) - SEED DRIVE (09) - CHASSIS

1

91262C1

BRACKET

hopper drive sprocket

2шт.

2

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

2

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

5

9628503

NUT,3/8"-16, G5

1шт.

6

817458C1

HANGER

2шт.

7

87414

LUBE NIPPLE,1/4" - 28

2шт.

8

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

8a

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

9

9823743

FLANGE NUT,Flg, 5/16"-18

4шт.

10

817457C1

SPROCKET

9 tooth, double pitch

1шт.

11

REF

INSTRUCTION

CHAIN ASSY., countershaft drive

2шт.

Use 33 links from roll 569089R1 1 connecting link 1277928C91 and 10 offset link 456929R91

1шт.

12

1279941C1

BRACKET

idler

1шт.

13

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

15

9628503

NUT,3/8"-16, G5

1шт.

20

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

21

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

22

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

23

86632556

JAM NUT,Jam, 5/8"-11, G5

1шт.

24

819457C1

SPROCKET

6 tooth, plastic

1шт.

28

90938C1

BAR

hex 7/8" x 87 7/8" long

2шт.

28

1279949C1

BAR

hex .875" x 117.1"

2шт.

29

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

5шт.

30

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

31

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

6шт.

32

80681

LOCK WASHER,5/16"

10шт.

33

9635082

NUT,5/16" - 18, Gr 5

10шт.

34

87461085

SPROCKET

collar locking

2шт.

35

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

4шт.

36

1279892C1

SPROCKET

12 tooth and 24 tooth assembly

1шт.

37

1279893C1

SPROCKET

22 tooth and 44 tooth assembly

2шт.

38

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

6шт.

38

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

8шт.

39

1254283C1

COUPLING

7/8" hex shaft

1шт.

40

83984714

SET SCREW,Sq Hd, 3/8"-16 x 1/2", Cup Pt

2шт.

41

REF

INSTRUCTION

CHAIN ASSY., Feedshaft Drive

1шт.

Use 19 links from roll 569089R1 1 connecting link 1277928C91 and 3 offset link 456929R91

1шт.

44

123082A1

BAR

DRIVE IDLER LH, Serial Range: -JAG0851408

1шт.

Single welded 2 bearing support and idler mount replaced with 123082A2 bracket, 222498A1 angle and 222497A1 bar plus attaching hardware, items 59-66

1шт.

Not Shown

1шт.

45

123322A1

BAR

DRIVE IDLER RH, Serial Range: -JAG0851408

1шт.

Single welded 2 bearing support and idler mount replaced with 123082A2 bracket, 222498A1 angle and 222497A1 bar plus attaching hardware, items 59-66

1шт.

Not Shown

1шт.

45

123322A2

BAR

drive idler RH

2шт.

46

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

47

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

48

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

49

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

2шт.

50

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

51

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

52

86632556

JAM NUT,Jam, 5/8"-11, G5

2шт.

53

819457C1

SPROCKET

6 tooth, plastic

2шт.

55

122890A1

SUPPORT

bearing, Years: -01-MAR-07

1шт.

55

87628275

SUPPORT

bearing, Start Year: 01-MAR-07

1шт.

56

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

57

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

58

280431

NUT,1/2"-13, G5

2шт.

59

222497A1

BAR

bearing support soybean sp

1шт.

60

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

2шт.

61

12034871

WASHER

5/8"

2шт.

61a

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

62

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

63

222498A1

ANGLE

adj bracket seed drive mount l 37 e

1шт.

64

133351A1

U-BOLT,1/2" - 13 x 179.20mm W x 210mm L

us 1/2"-13 7" wide x 8 1/4" deep with 1 3/8" thread

1шт.

65

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

66

280431

NUT,1/2"-13, G5

2шт.
