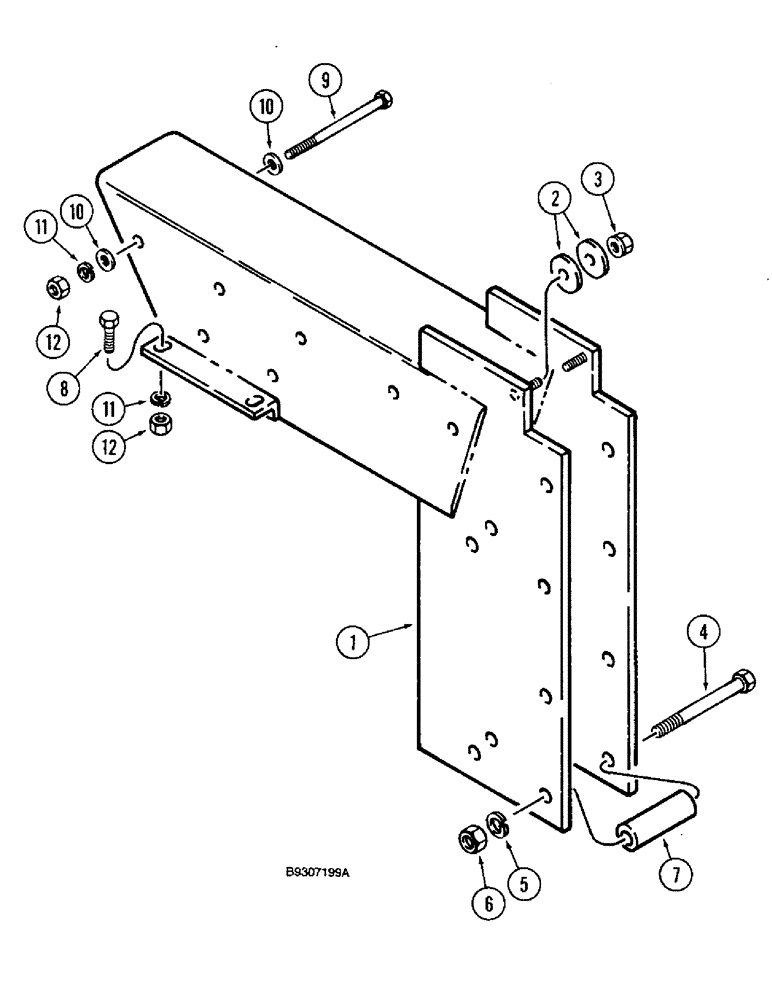

Запчасти Case IH 5400 (9-12) - HOPPER SUPPORT, 20 FOOT DRILL (09) - CHASSIS

1

122321A1

BRACKET

center soybean special

1шт.

2

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

4шт.

3

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

4

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

4шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

6

280431

NUT,1/2"-13, G5

4шт.

7

23885K

SPACER,3/4" Tube x 2 1/16"

1шт.

8

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

10

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

14шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

11шт.

12

9628503

NUT,3/8"-16, G5

11шт.
