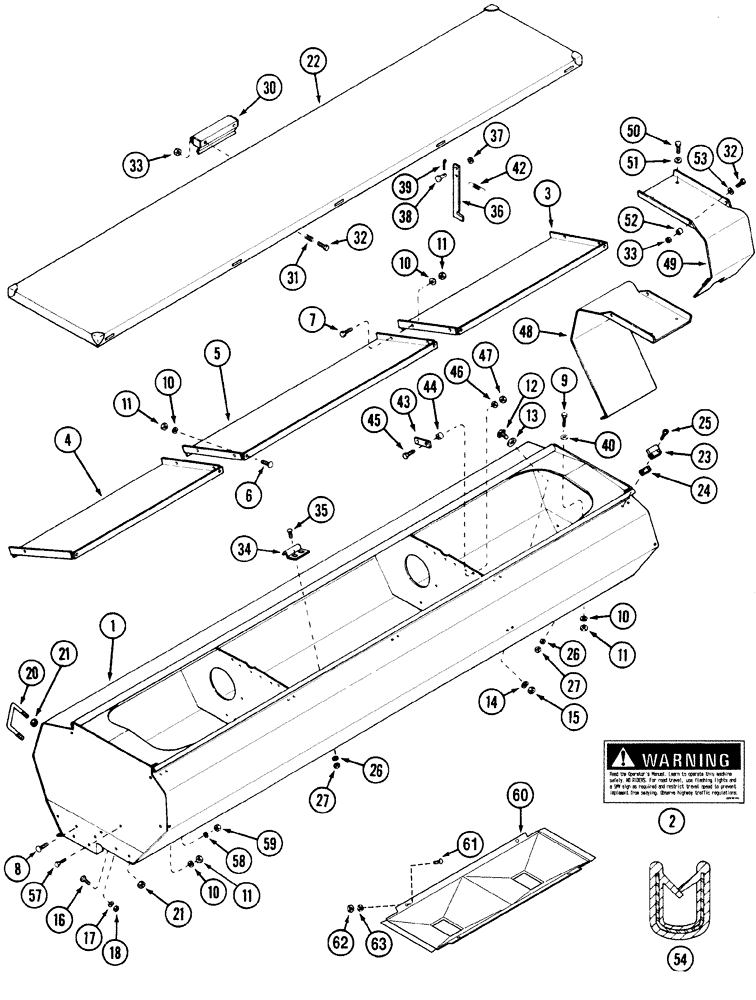

Запчасти Case IH 5400 (9-10) - HOPPER, GRAIN, 20 FOOT DRILL (09) - CHASSIS

1

90848C2

HOPPER

W/PRODUCT-GRAPHIC, Serial Range: -CKB0030000

2шт.

1

90848C3

HOPPER

W/PRODUCT-GRAPHIC, Years: -30-JUN-02, Start Serial: CKB0030001

2шт.

1

90848C4

HOPPER

with programmer, Start Year: 01-JUL-02

2шт.

2

220321A1

WARNING DECAL

Non-Power Implement

1шт.

3

815818C2

PANEL

part outer 9.5'

2шт.

4

815819C2

PANEL

part RH

2шт.

5

815832C1

PANEL

center partition

2шт.

6

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

7

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

8шт.

8

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

11

9628503

NUT,3/8"-16, G5

1шт.

12

280580

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

4шт.

12

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

13

498-81005

SQ HOLE WASHER,13.49mm ID x 25.4mm OD x 1.52mm Thk

4шт.

14

12034871

WASHER

5/8"

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

15

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

15

280431

NUT,1/2"-13, G5

4шт.

16

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

12шт.

17

80682

LOCK WASHER,1/4"

12шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

12шт.

20

811627C2

U-BOLT

us 5/8" 5"w 3 1/2"d

2шт.

21

86632556

JAM NUT,Jam, 5/8"-11, G5

8шт.

22

815157C2

COVER

hopper 10'

2шт.

23

815173C1

HINGE

bracket grain lid

10шт.

24

97620C1

SHIM

hinge

10шт.

25

470-12516

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

20шт.

26

80682

LOCK WASHER,1/4"

1шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

30

815174C1

LATCH

grain box lid black

2шт.

31

N32176

SPRING

C .072" wire x .594" od x 3/4" long

4шт.

32

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

33

280736

NUT,5/16"-18, GC

1шт.

34

815175C1

CLIP

bracket lid latch

2шт.

35

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

36

815176C1

ARM

brace lid prop

4шт.

37

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

12шт.

38

427-5071

CLEVIS PIN,7.92mm OD x 18.26mm L

4шт.

39

88788

COTTER PIN,3/32" x 1/2"

4шт.

40

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

16шт.

42

398304R1

SPRING

E .051 wire .313 OD 2.14

4шт.

43

815178C1

SPACER

hold lid

4шт.

44

594536R1

BUSHING

3/8"id x 1/2"od x 5/16"lg

8шт.

45

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

46

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

47

9628503

NUT,3/8"-16, G5

8шт.

48

91275C1

COVER

rear hopper

1шт.

49

91277C1

COVER

hopper front

1шт.

50

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

51

95-81081

WASHER,13/32" x 7/8" x .065"

4шт.

52

700121908

SPACER

1/4 X 3/8"

4шт.

53

86624142

WASHER,0.34" ID x 0.75" OD x 0.12" Thk

4шт.

54

REF

INSTRUCTION

TRIM, Edge, Order: 13301108CX, Cut To Length

1шт.

54

1330108CX

SEAL,304.8mm L

Trim Edge Black, 250' Roll

1шт.

57

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

58

80681

LOCK WASHER,5/16"

4шт.

59

9635082

NUT,5/16" - 18, Gr 5

4шт.

60

355384A2

FUNNEL

hopper 15" spacing 10', Start Serial: CKB0030001

8шт.

61

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

24шт.

62

7770

NUT,Hex, 1/4 - 20, Cl 5

24шт.

63

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

24шт.

100

351150A1

BAFFLE

funnel hopper 15" spacing 15'

6шт.
