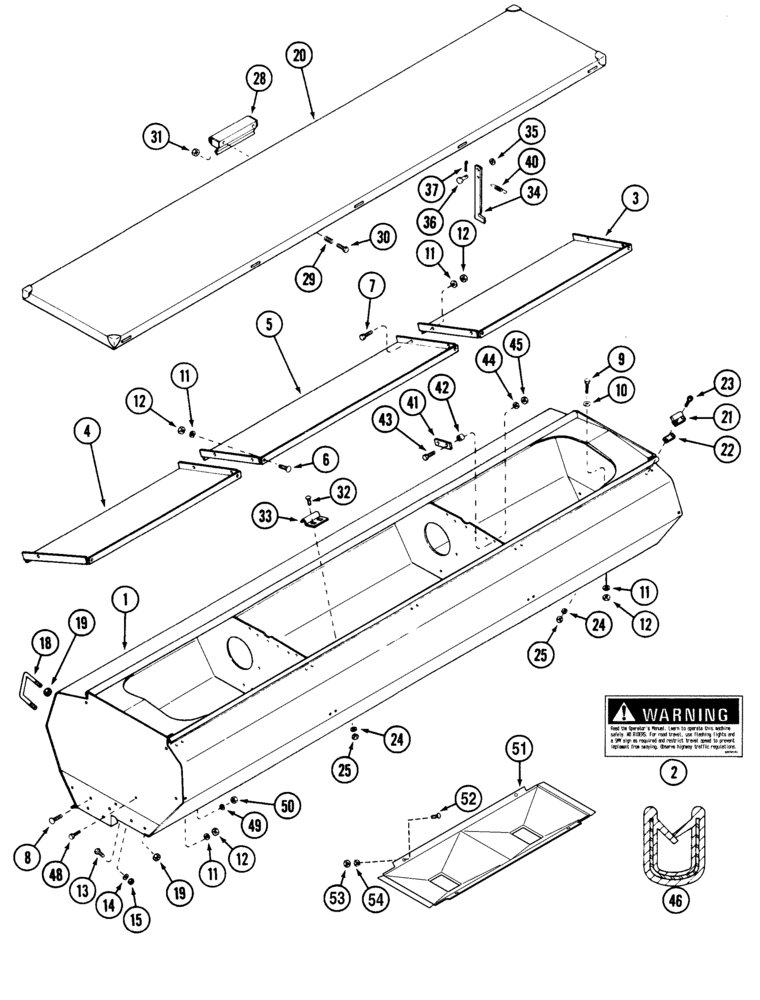

Запчасти Case IH 5400 (9-08) - HOPPER, GRAIN, 15 FOOT DRILL (09) - CHASSIS

1

97766C4

HOPPER

W/DECAL, Serial Range: -CKB0030000

1шт.

1

97766C5

HOPPER

W/DECAL, Serial Range: CKB0030001-CBJ0012318

1шт.

1

97766C6

HOPPER

with decal, Start Serial: CBJ0012319

1шт.

2

220321A1

WARNING DECAL

Non-Power Implement

1шт.

3

90948C1

PANEL

outer RH

1шт.

4

90949C1

PANEL

outer LH

1шт.

5

815832C1

PANEL

center partition

1шт.

6

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

7

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

8

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

10

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

8шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

12

9628503

NUT,3/8"-16, G5

1шт.

13

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

14

80682

LOCK WASHER,1/4"

6шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

6шт.

18

811627C2

U-BOLT

us 5/8" 5"w 3 1/2"d

2шт.

19

86632556

JAM NUT,Jam, 5/8"-11, G5

8шт.

20

90931C1

COVER

hopper 15', Years: -01-JAN-10

1шт.

21

815173C1

HINGE

bracket grain lid

7шт.

20

84286041

LID

Hopper 15', Start Year: 01-JAN-10

1шт.

22

97620C1

SHIM

hinge

7шт.

23

470-12516

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

14шт.

24

80682

LOCK WASHER,1/4"

1шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

28

815174C1

LATCH

grain box lid black

1шт.

29

N32176

SPRING

C .072" wire x .594" od x 3/4" long

2шт.

30

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

31

280736

NUT,5/16"-18, GC

2шт.

32

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

2шт.

33

815175C1

CLIP

bracket lid latch

1шт.

34

815176C1

ARM

brace lid prop

2шт.

35

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

6шт.

36

427-5071

CLEVIS PIN,7.92mm OD x 18.26mm L

2шт.

37

88788

COTTER PIN,3/32" x 1/2"

2шт.

40

398304R1

SPRING

E .051 wire .313 OD 2.14

2шт.

41

815178C1

SPACER

hold lid

2шт.

42

594536R1

BUSHING

3/8"id x 1/2"od x 5/16"lg

4шт.

43

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

44

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

45

9628503

NUT,3/8"-16, G5

4шт.

46

REF

INSTRUCTION

TRIM, Ege, Order: 13301108CX, Cut To Lengh

1шт.

46

1330108CX

SEAL,304.8mm L

Trim Edge Black, 250' Roll

1шт.

48

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

49

80681

LOCK WASHER,5/16"

4шт.

50

9635082

NUT,5/16" - 18, Gr 5

4шт.

51

355384A2

FUNNEL

hopper 15" spacing 10', Start Serial: CKB0030001

2шт.

51

351150A1

BAFFLE

funnel hopper 15" spacing 15', Start Serial: CKB0030001

4шт.

52

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

24шт.

53

7770

NUT,Hex, 1/4 - 20, Cl 5

24шт.

54

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

24шт.
