Запчасти Case IH 5400 (9-04) - FOOTBOARD, SUPPORT STAND (GRAIN DRILLS BSN CKB0030000) (09) - CHASSIS

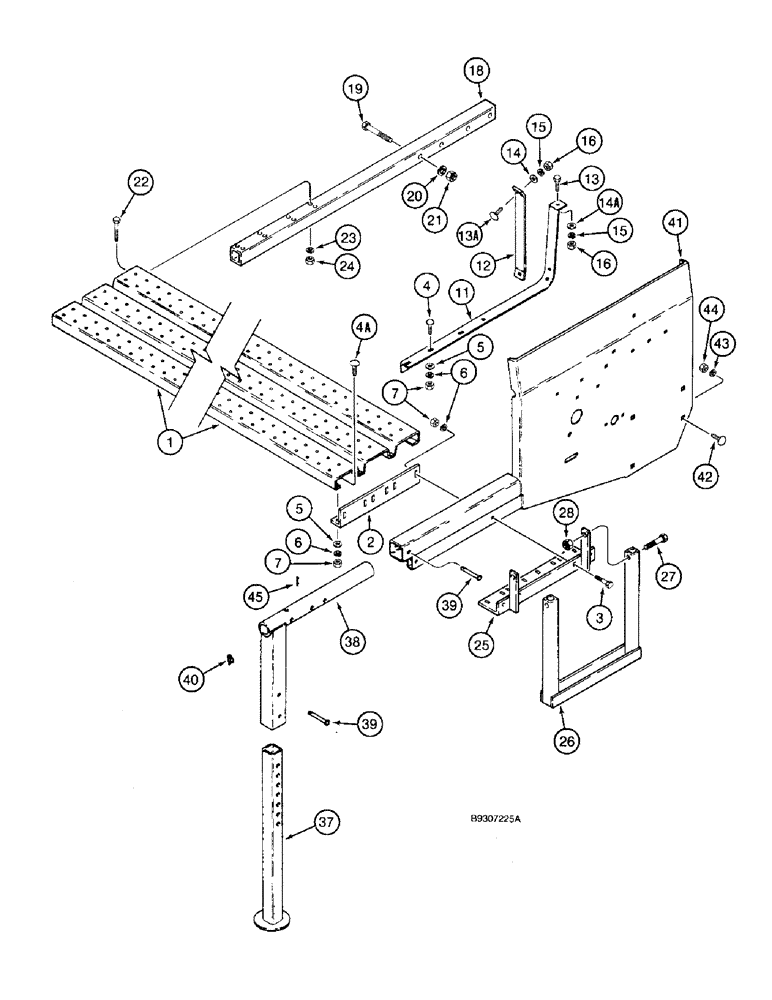

Схема запчастей Case IH 5400 - (9-04) - FOOTBOARD, SUPPORT STAND (GRAIN DRILLS BSN CKB0030000) (09) - CHASSIS
39
6
4
19
38
16
6
40
18
42
24
3
15
28
13a
20
5
11
14a
12
25
45
23
37
41
2
26
22
44
4a
7
15
7
21
39
16
14
1
5
43
27
13

Артикул

Название

Примечание

Количество

1

817420C4

FOOT REST

SECTION, FOOTBOARD - 14.5 FT.

1шт.

15' Drill

1шт.

1

817547C3

FOOT REST

SECTION, FOOTBOARD - 9.5 FT.

2шт.

20' Drill

1шт.

2

1279695C1

ANGLE

footboard

2шт.

3

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

4шт.

4

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

8шт.

4a

280827

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

8шт.

5

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

14шт.

6

80681

LOCK WASHER,5/16"

20шт.

7

9635082

NUT,5/16" - 18, Gr 5

20шт.

11

1279896C2

SUPPORT

ASSY, FOOTBOARD - LONG

2шт.

12

1279899C1

BRACKET

Brace flat

2шт.

13

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13a

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

14

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

2шт.

14a

495-81132

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

2шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

16

9628503

NUT,3/8"-16, G5

6шт.

18

122328A1

TUBE,1212 mm Length

CENTER SUPPORT SOYBEAN

1шт.

19

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

3шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

21

280431

NUT,1/2"-13, G5

3шт.

22

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

23

80681

LOCK WASHER,5/16"

4шт.

24

9635082

NUT,5/16" - 18, Gr 5

4шт.

25

127733A1

ANGLE

ASSY, Serial Range: -CKB0030001

2шт.

26

127729A1

STEP

ASSY

2шт.

27

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

4шт.

28

86992215

LOCK NUT,1/2"-13, GC

4шт.

37

1279976C2

SUPPORT

lower stand

2шт.

38

1986446C2

SUPPORT

ASSY, UPPER

2шт.

39

86979987

HEADED PIN,1/2" x 3", G5

4шт.

40

A33497

LINCH PIN,4.76mm OD Pin

Klik

2шт.

41

90819C3

BRACKET

end assembly RH

1шт.

41a

90818C3

BRACKET

end assembly LH

1шт.

42

280832

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5, Full Thd

8шт.

43

12034871

WASHER

5/8"

8шт.

44

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

45

394818

COTTER PIN,M5 x 25

2шт.

Выбрано товаров: 40
