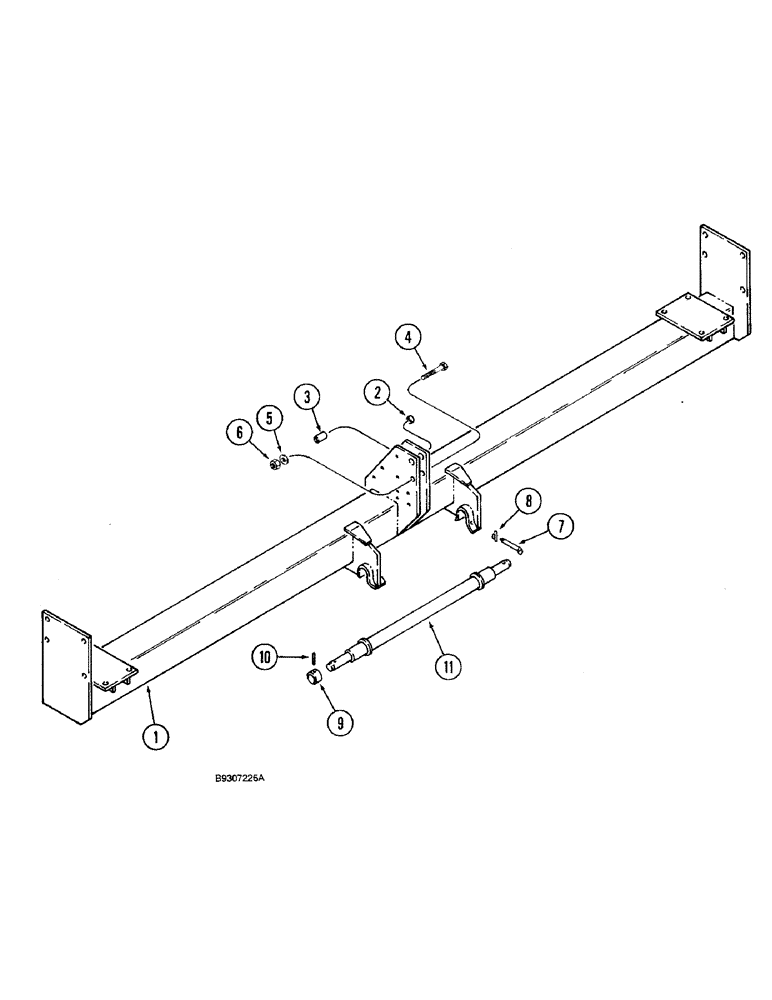

Запчасти Case IH 5400 (9-02) - MAIN FRAME (09) - CHASSIS

1

122324A1

FRAME

15' drill soybean special

1шт.

1a

122323A1

FRAME

20' drill soybean special

1шт.

2

97772C1

BUSHING

tension 1 1/4" x 1" x 1/2" lg

2шт.

3

462425R2

SPACER

mast cat

1шт.

4

280210

BOLT,Hex, 3/4"-10 x 4", G5

1шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

6

280954

NUT,3/4"-10, G5

1шт.

7

141292C2

PIN,19.05mm OD x 100mm L

2шт.

8

A33497

LINCH PIN,4.76mm OD Pin

Klik

2шт.

9

401233R1

COLLAR

thrust

2шт.

10

86624095

PIN,12.7mm OD x 50.8mm L

2шт.

11

137084C1

SPINDLE

CAT II

1шт.

11

137083C1

SPINDLE

CAT III

1шт.

11

1980778C1

SPINDLE

CAT III With CAT II Hitch Spreader

1шт.
