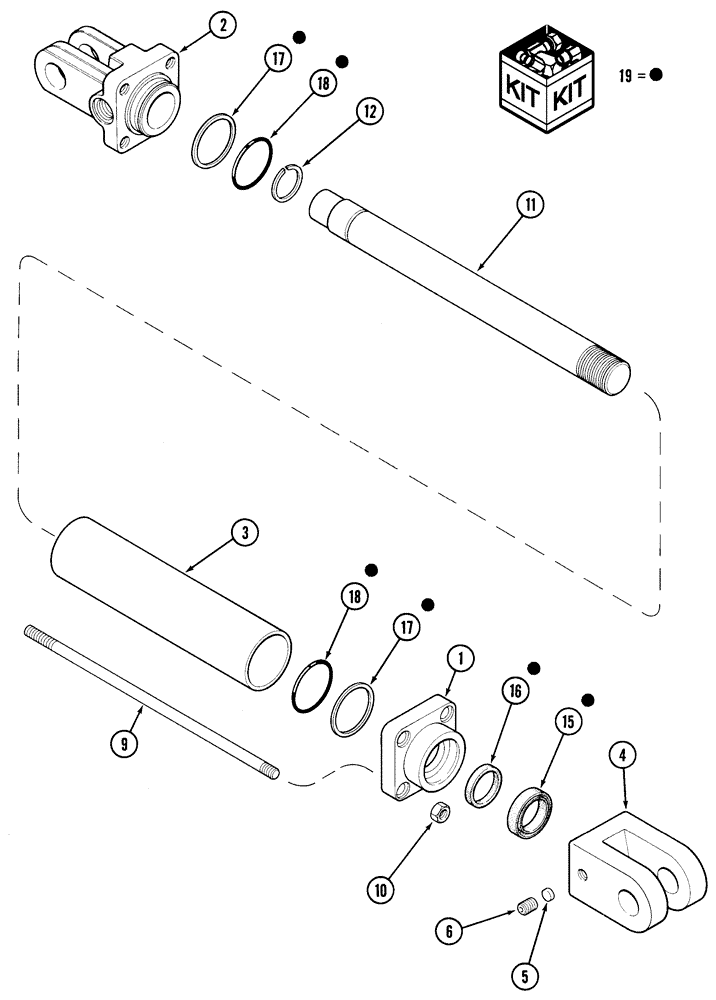

Запчасти Case IH 5400 (8-10) - MARKER LIFT CYLINDER, 414701A1, 15 FOOT DRILL (2ND DATE RANGE) (08) - HYDRAULICS

0

414701A1

HYDRAULIC CYLINDER

2" x 8" 3000 psi without pins, Years: 07-JUL-01-12-JAN-03

1шт.

1

1272769C1

HEAD

1шт.

2

1272768C1

HEAD

clevis

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE Cylinder

1шт.

4

145233C1

CLEVIS,1/4" - 12

end, rod

1шт.

5

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

6

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

9

145248C1

ROD,3/8" - 16 x 318mm

hyd cylinder tie

4шт.

10

9628503

NUT,3/8"-16, G5

4шт.

11

92887C1

PISTON ROD

hyd cylinder

1шт.

12

92888C1

RING, LOCKING

RING, LOCK retaining, external, 1 5/32"

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER, Rod

1шт.

Included in repair kit 79974C2

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL, Rod

1шт.

Included in repair kit 79974C2

1шт.

17

NSS

NOT SOLD SEPARAT

RING Backup

2шт.

Included in repair kit 79974C2

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING, Head

2шт.

Included in repair kit 79974C2

1шт.

19

79974C2

SEAL KIT

hyd cylinder service

1шт.

Some O-rings in kit are not used in this application

1шт.
