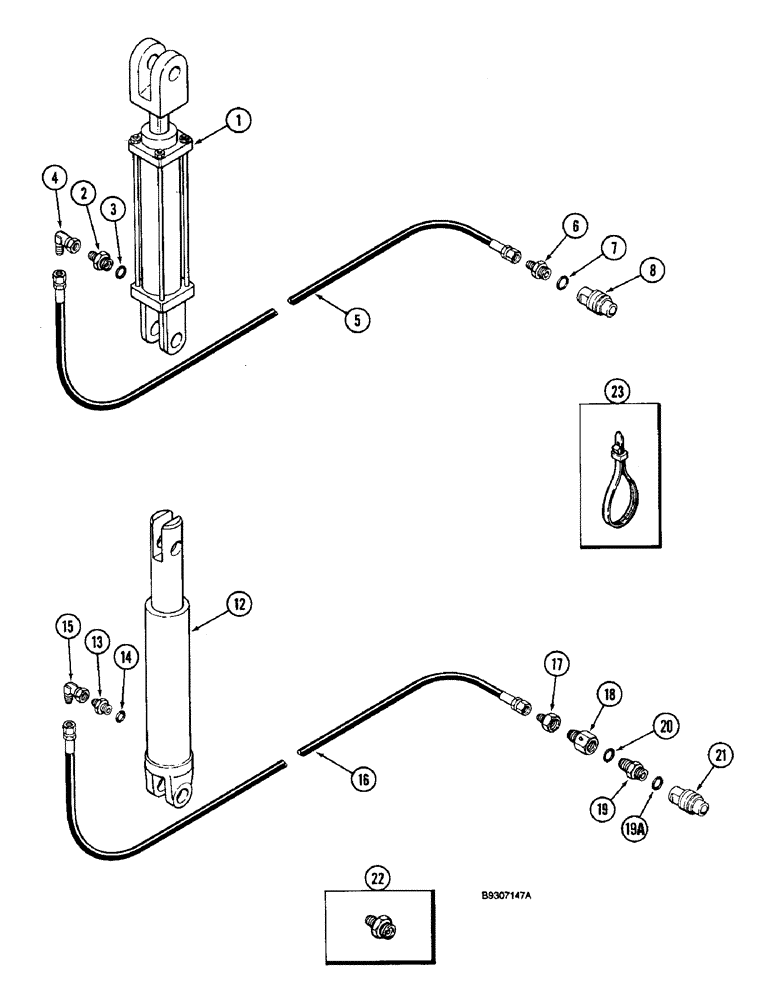

Запчасти Case IH 5400 (8-06) - MARKER HYDRAULICS, HYDRAULIC SELECTOR, 15 & 20 FOOT DRILL (08) - HYDRAULICS

1

1272484C92

HYDRAULIC CYLINDER

1 1/4" x 8", Years: -06-JUL-01

2шт.

1

414701A1

HYDRAULIC CYLINDER

2" x 8" 3000 psi without pins, Years: 07-JUL-01-12-JAN-03

2шт.

1

86989787

HYDRAULIC CYLINDER

2" x 8", 3000 psi, single acting, no pins, Start Year: 15-JUN-03

2шт.

2

1263477C3

HYD CONNECTOR

union restrictor

2шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

4

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

5

147779C1

HYDRAULIC HOSE

1/4" x 145" fl

2шт.

6

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

2шт.

7

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

1341843C1

QUICK MALE COUPLING

MALE

2шт.

12

REF

INSTRUCTION

CYLINDER ASSY., Marker Lift

2шт.

13

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

16

1261401C1

HOSE,6.40 mm ID x 5200.00 mm, SAE 100R1

2шт.

16

97647C1

HYDRAULIC HOSE,12.70 mm ID x 4318.00 mm, SAE 100 R1

2шт.

17

218-793

REDUCER,37 Degree, 5/8" x 1/4" Tube

2шт.

18

1279860C91

RESTRICTOR

valve assembly

2шт.

19

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

2шт.

19a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

21

1341843C1

QUICK MALE COUPLING

MALE

2шт.

22

1958271C1

RESTRICTOR

FIT STL .5MB .375 MJ

1шт.

23

813579C1

CABLE TIE

CABLE STRAP TIE

1шт.

24

86632549

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

2шт.
