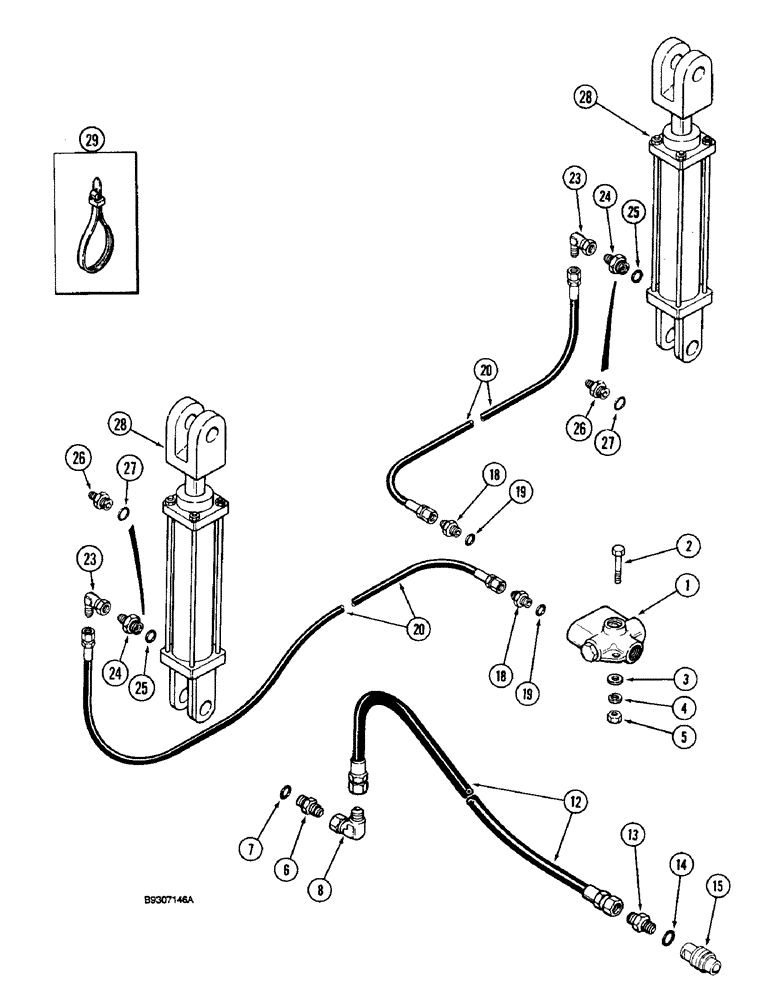

Запчасти Case IH 5400 (8-04) - MARKER HYDRAULICS, AUTOMATIC ALTERNATION HYDRAULIC SELECTOR (08) - HYDRAULICS

1

93006C1

HYDRAULIC VALVE

sequencing 2 way

1шт.

2

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

2шт.

3

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

2шт.

4

80681

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

93207C1

HYD CONNECTOR

1/2" mb x 1/2" mj .052 orifice

1шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

12

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

1шт.

13

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

1341843C1

QUICK MALE COUPLING

MALE

1шт.

18

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

129768C1

HYDRAULIC HOSE

1/4" x 115" fl

2шт.

20

810601C1

HYDRAULIC HOSE,9.53mm ID x 4191mm L

1/4" x 165" fl

2шт.

23

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

24

1263477C3

HYD CONNECTOR

union restrictor

2шт.

25

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

26

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

27

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

REF

INSTRUCTION

CYLINDER ASSY., Marker Lift

2шт.

29

813579C1

CABLE TIE

CABLE STRAP TIE

1шт.
