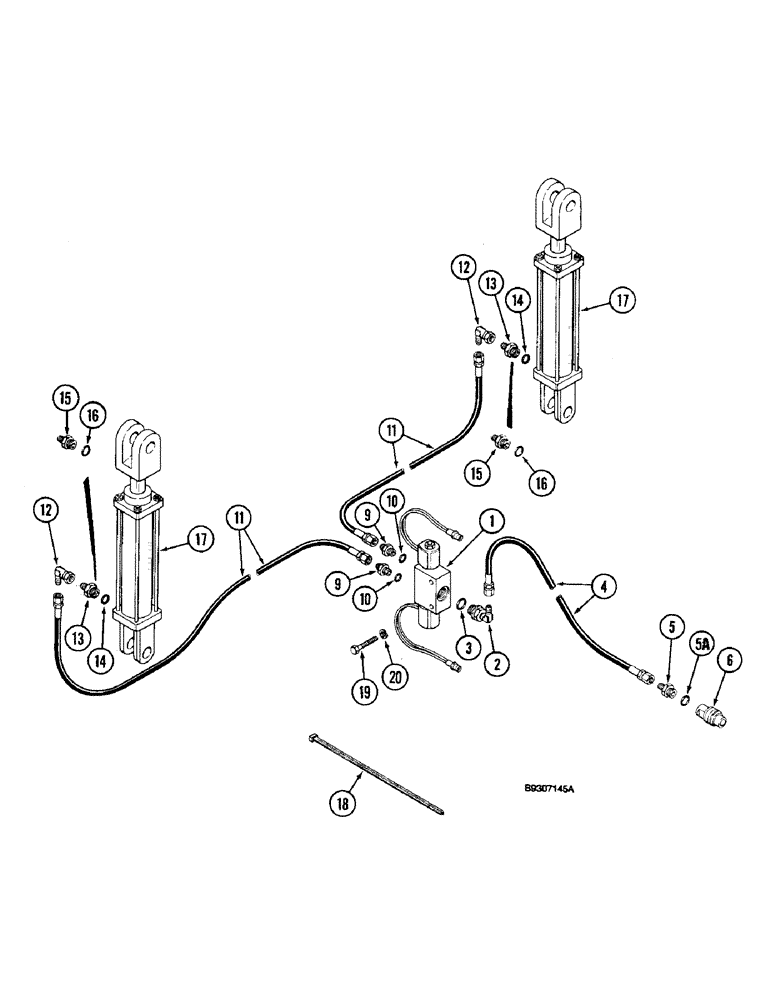

Запчасти Case IH 5400 (8-02) - MARKER HYDRAULICS, ELECTRONIC SELECTOR (08) - HYDRAULICS

1

149988C92

VALVE

assembly

1шт.

2

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

147876C1

HYDRAULIC HOSE

1/4" x 45" fl, 3/8" fjic x 3/8" fjic

1шт.

5

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

1шт.

5a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

1341843C1

QUICK MALE COUPLING

MALE

1шт.

9

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

129768C1

HYDRAULIC HOSE

1/4" x 115" fl

2шт.

11

810601C1

HYDRAULIC HOSE,9.53mm ID x 4191mm L

1/4" x 165" fl

2шт.

12

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

13

1263477C3

HYD CONNECTOR

union restrictor

2шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

15

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

REF

INSTRUCTION

CYLINDER ASSY., Marker Lift

2шт.

18

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

4шт.

19

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

20

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.
