Запчасти Case IH 5400 (4-18) - SAFETY LIGHT HARNESS (04) - ELECTRICAL SYSTEMS

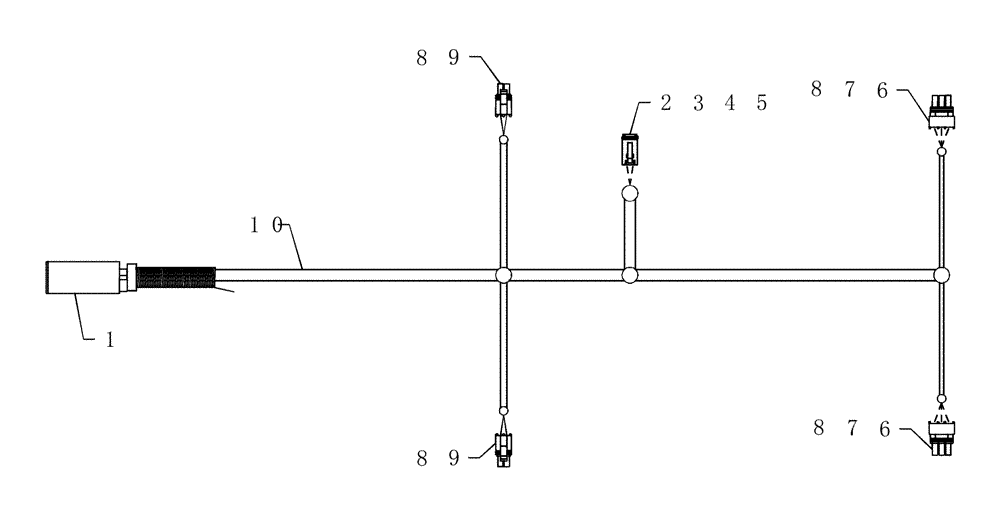

Схема запчастей Case IH 5400 - (4-18) - SAFETY LIGHT HARNESS (04) - ELECTRICAL SYSTEMS
8
9
4
1
8
2
10
8
6
8
9
6
5
7
7
3

Артикул

Название

Примечание

Количество

1

121646C1

TERMINAL CONNECTOR,Female

metal 7c plug c/w cable protector

1шт.

2

51200043

ELEC CONNECTOR,6 Pin

Plastic 6c Plug

1шт.

3

51200044

STOP LOCK

6c plug connector

1шт.

4

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

5шт.

6

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

2шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

1шт.

7

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

4шт.

8

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

6шт.

9

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

10

87419283

HARNESS

lighting 5400

1шт.

Выбрано товаров: 10
