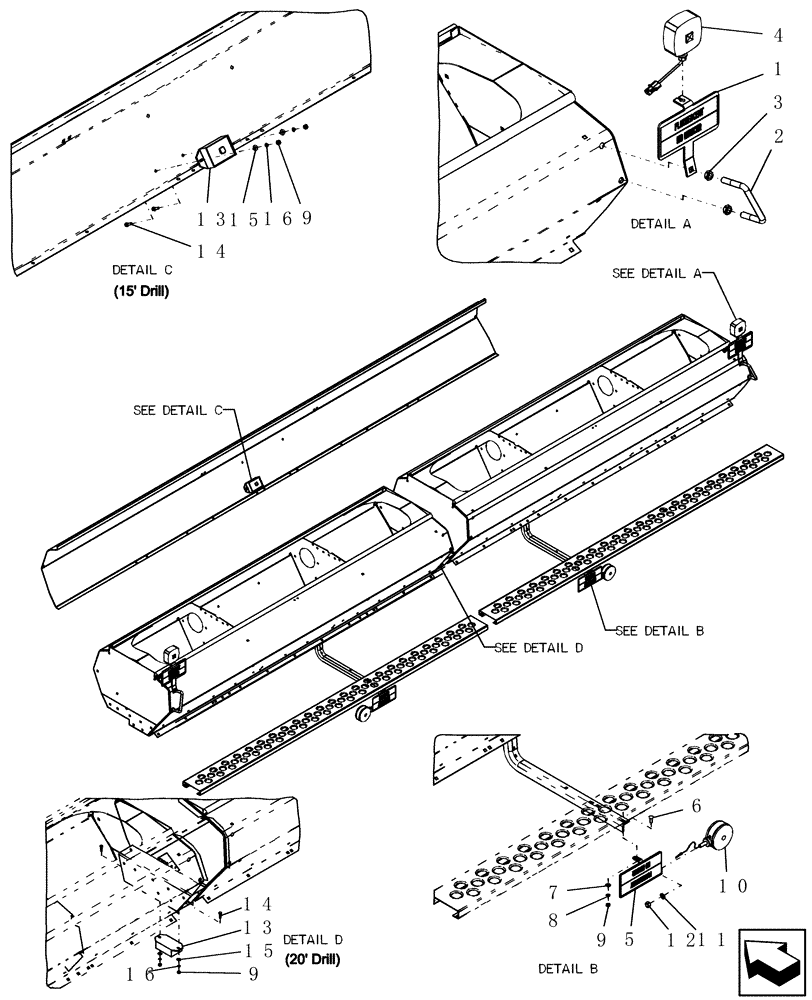

Запчасти Case IH 5400 (4-16) - SAFETY LIGHT SYSTEM (04) - ELECTRICAL SYSTEMS

1

87414528

BRACKET

warning light 5400

2шт.

2

811627C2

U-BOLT

us 5/8" 5"w 3 1/2"d

2шт.

3

86632556

JAM NUT,Jam, 5/8"-11, G5

4шт.

4

192052A1

REPAIR KIT

warning light (2 wire), Years: -01-SEP-05

2шт.

Shown

1шт.

4

87564157

WARNING LIGHT

assembly amber, Start Year: 01-OCT-05

2шт.

Not Shown

1шт.

5

87417141

BRACKET

warning light LH

1шт.

5

87417076

BRACKET

warning light RH

1шт.

6

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

7

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

2шт.

8

80681

LOCK WASHER,5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

14шт.

10

51200040

LIGHT

assy. stop tail/signal red

2шт.

Includes 6815 and 86537133

1шт.

10

6815

LENS

red

2шт.

10

86537133

BULB,C6, #1157, 12.8V

2шт.

10

84129422

BULB

Double Contact, 1156DC

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

12

280431

NUT,1/2"-13, G5

2шт.

13

86561136

MODULE

implement lighting control

2шт.

14

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

15

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

6шт.

16

80682

LOCK WASHER,1/4"

6шт.

100

87419225

HARNESS

safety lighting 5400

1шт.

100

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

10шт.

100

92144C1

CABLE CLIP

.025-.055

26шт.

100

366460R1

CABLE CLIP

j 1/4" short

8шт.

100

87016542

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

100

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

2шт.

100

493-81000

LOCK WASHER,Ext-Int Tooth, #10

2шт.
