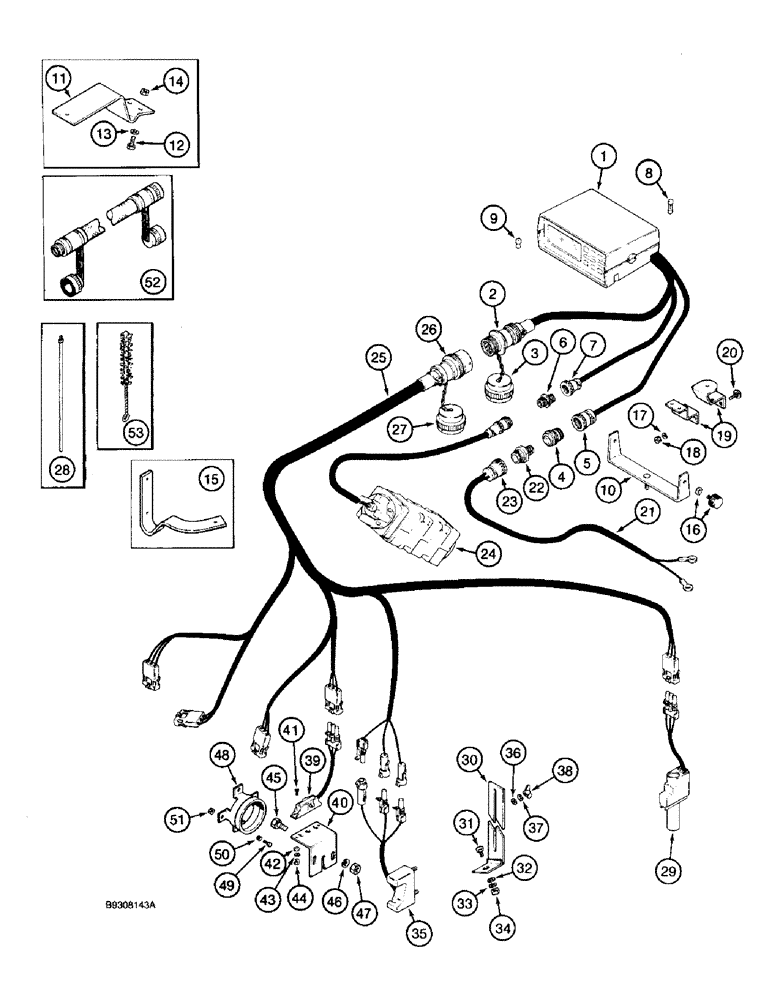

Запчасти Case IH 5400 (4-14) - EARLY RISER MONITOR SYSTEM (04) - ELECTRICAL SYSTEMS

1

1336000C2

CONTROL

CONSOLE EARLY RISER MONITOR

1шт.

1

1935062C2

REMAN-ELECT GAUGE

CONSOLE, REMANUFACTURED

1шт.

1

1935063C2

CORE-MONITOR

CONSOLE

1шт.

2

225337C1

ELEC CONNECTOR,20 - 22

TYPE LV DEUTSCH HD34

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

3

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

4

87675194

MULTIPOLE CONNECTOR,Female, 3 Pole

plastic 3c plug

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

5

225141C1

MULTIPOLE CONNECTOR

TYPE GK AMP# 206322-

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

6

1994740C1

ELEC CONNECTOR,Female, 4 Pin

TYPE MD AMP# 206430-

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

7

1994741C1

CONTACT HOUSING

TYPE MC AMP# 206358-

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

8

86705048

FUSE,5 Amp, Type 3AG

2шт.

9

3221006R1

BULB,W10/3, 12V, 3W

2шт.

10

1261523C91

BRACKET

MOUNTING

1шт.

11

90905C2

BRACKET, SUPPORTING

MOUNTING - CASE

1шт.

12

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

13

28588R1

WASHER

.344 X .688 X .05 PLN

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

1960456C1

BRACKET

MOUNTING - 7100

1шт.

15

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

2шт.

15

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

15

232-4114

LOCK NUT,1/4"-20, GC

2шт.

16

1336002C1

KNOB

PACKAGE, W/WASHERS - 2 PER BAG

1шт.

17

80681

LOCK WASHER,5/16"

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

1шт.

19

1261522C91

BRACKET, SUPPORTING

MOUNTING - IH

1шт.

20

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

21

1336001C2

CABLE

BATTERY

1шт.

22

225362C1

TERMINAL CONNECTOR

TYPE ME ITT# 192991-

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

23

225141C1

MULTIPOLE CONNECTOR

TYPE GK AMP# 206322-

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

24

97576C1

SENSOR

sensor attachment

1шт.

24

BN95030AR

SENSOR

5400 CASE IH SOYBEAN SPECIAL GRAIN DRILL, sensor attachment (8/90-8/07)

1шт.

24

BN95030AC

CORE-SENSOR

Return Number

1шт.

25

134518A1

HARNESS

ASSY, EARLY RISER 11 ROW

1шт.

25

134519A1

HARNESS

ASSY, EARLY RISER 15 ROW

1шт.

25

134519A2

HARNESS

16 ROW EARLY RISER

1шт.

26

225336C1

ELEC CONNECTOR,Male, 35 Pin

TYPE LU DEUTSCH HDB3

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

27

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

28

217285C1

STRAP

WRAP 4 IN.

1шт.

28

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

28

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

29

1978894C1

SENSOR

HI RATE

1шт.

29a

147237C1

PLASTIC-RUBBER TUBE

sensor dummy black - packaged

1шт.

30

134175A1

BRACKET

HOPPER LEVEL SENSOR

1-2шт.

31

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

32

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

1шт.

33

80681

LOCK WASHER,5/16"

1шт.

34

9635082

NUT,5/16" - 18, Gr 5

1шт.

35

1336023C2

SENSOR

hopper level

1-2шт.

36

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2-4шт.

37

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2-4шт.

38

129-900

WING NUT,Locking, #10-32

2-4шт.

39

1336025C2

SENSOR

DISTANCE

1шт.

40

1264112C2

BRACKET

MOUNTING

1шт.

41

281007

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1/2"

2шт.

42

495-31016

WASHER,#6

4шт.

43

493-11014

LOCK WASHER,Ext-Int Tooth, #6

2шт.

44

88458

NUT,#6 - 32, Gr 5

2шт.

45

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

46

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

47

280431

NUT,1/2"-13, G5

1шт.

48

1264113C1

MAGNET

1шт.

49

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

50

1264197C1

WASHER

STEP

4шт.

51

9635082

NUT,5/16" - 18, Gr 5

4шт.

52

1336017C4

HARNESS

15 FT EXTENSION CABLE

1шт.

53

128817C1

BRUSH, COMMUTATOR

BRUSH SENSOR CLEANING

1шт.

100

ZJI1400004

TOOL KIT

ELECTRICAL

1шт.
