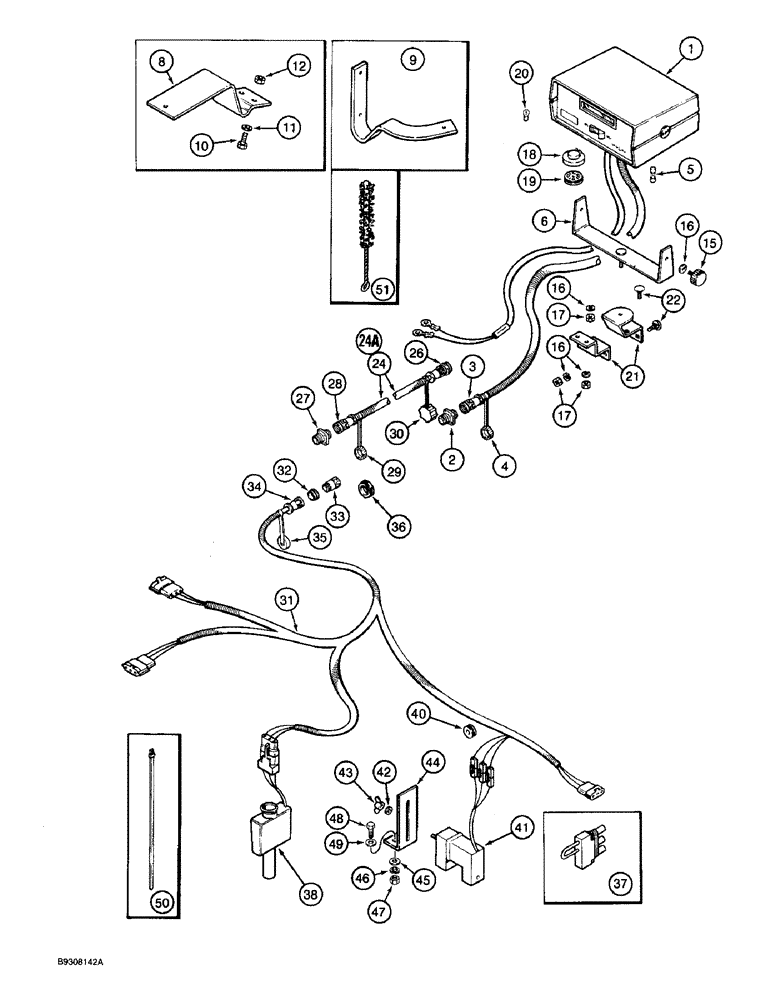

Запчасти Case IH 5400 (4-12) - SEED FLOW II MONITOR SYSTEM (04) - ELECTRICAL SYSTEMS

1

245821C92

CONTROL MONITOR

SEED FLOW II

1шт.

1

126420A1R

REMAN-ELECT MONITOR

Reman Monitor Remanufactured Console, Seed Flow II

1шт.

1

126420A1C

CORE-MONITOR

Return Number, Monitor

1шт.

2

225138C1

CONNECTOR, ELEC

CONNECTOR TYPE GV

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

3

245491C1

ELEC CONNECTOR

TYPE GJ

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

4

225163C1

ELEC CONNECTOR

CAP, TYPE GF

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

5

223-38

FUSE,3 Amp, Type 3AG

1шт.

6

1261523C91

BRACKET

MOUNTING

1шт.

8

90905C2

BRACKET, SUPPORTING

MOUNTING - CASE

1шт.

9

1960456C1

BRACKET

MOUNTING - 7100

1шт.

9

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

2шт.

9

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

9

280129

NUT,1/4"-20

2шт.

10

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

11

28588R1

WASHER

.344 X .688 X .05 PLN

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

1261524C91

REPAIR KIT

PACKAGE, KNOBS

1шт.

16

80681

LOCK WASHER,5/16"

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

1шт.

18

1261548C1

ALARM

buzzer

1шт.

19

1261549C1

DAMPER

ALARM

1шт.

20

58554C1

BULB,C2F, #1892, 14V

1шт.

21

1261522C91

BRACKET, SUPPORTING

MOUNTING - IH

1шт.

22

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

24

245743C2

HARNESS

CABLE ASSY 19" Long

1шт.

24a

133896C95

HARNESS

CABLE, EXTENSION (Used With Large 4 Wheel Drive Tractors) 18 Ft Long

1шт.

26

245490C1

ELEC CONNECTOR,Female, 37 Pin

TYPE GA

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

27

225138C1

CONNECTOR, ELEC

CONNECTOR TYPE GV

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

28

245491C1

ELEC CONNECTOR

TYPE GJ

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

29

225163C1

ELEC CONNECTOR

CAP, TYPE GF

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

30

225341C1

CONTACT HOUSING,Male

CAP, TYPE MF

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

31

134515A1

HARNESS

ASSY, SEED FLOW 11 11 ROWS

1шт.

31

134516A1

HARNESS

ASSY, SEED FLOW 11 15 ROWS

1шт.

32

245490C1

ELEC CONNECTOR,Female, 37 Pin

TYPE GA

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

33

225338C1

ELEC CONNECTOR,Male, Pin

TYPE MB

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

34

245491C1

ELEC CONNECTOR

TYPE GJ

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

35

225341C1

CONTACT HOUSING,Male

CAP, TYPE MF

1шт.

Part of kit harness repair, P/N ZJI1400004 or can be ordered through Ship Direct Central

1шт.

36

60-6129T2

CONNECTION

RING COUPLING

10шт.

37

245617C1

CONNECTOR,ELECTRIC

CABLE, SHORTING PLUG

2шт.

38

245598C2

SENSOR

CONTROL, SEED

1шт.

38a

147237C1

PLASTIC-RUBBER TUBE

sensor dummy black - packaged

1шт.

40

1279331C1

GROMMET

1шт.

41

245606C2

SENSOR

CONTROL, HOPPER

1-2шт.

42

495-81124

WASHER,0.38" ID x 0.75" OD x 0.06" Thk

1-2шт.

43

80801

WING NUT

5/16"-18

1-2шт.

44

134175A1

BRACKET

HOPPER LEVEL SENSOR

1-2шт.

45

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

1шт.

46

80681

LOCK WASHER,5/16"

1шт.

47

9635082

NUT,5/16" - 18, Gr 5

1шт.

48

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

49

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

1шт.

50

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

50

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

51

128817C1

BRUSH, COMMUTATOR

BRUSH SENSOR CLEANING

1шт.

100

ZJI1400004

TOOL KIT

ELECTRICAL

1шт.
