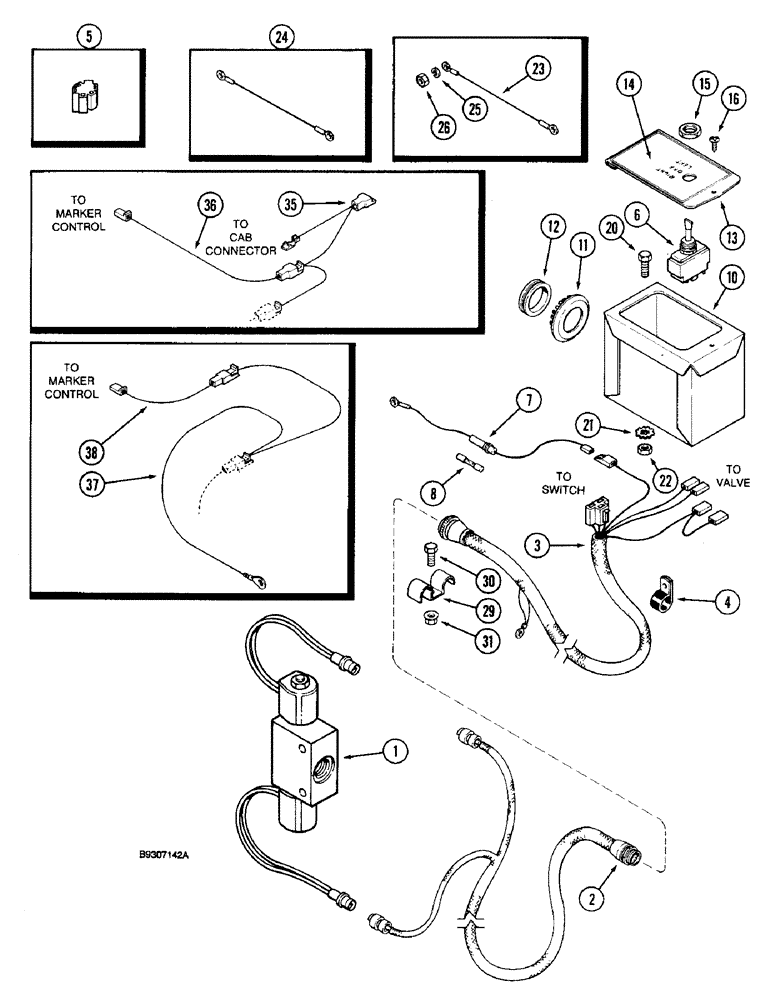

Запчасти Case IH 5400 (4-08) - MARKER CONTROL ELECTRICAL SYSTEM, ELECTRONIC SELECTOR (04) - ELECTRICAL SYSTEMS

1

149988C92

VALVE

assembly

1шт.

2

1279552C1

HARNESS

marker control

1шт.

3

141405C2

HARNESS

marker control 3944mm (155") long

1шт.

4

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

J 3/8" cable

1шт.

5

491058C1

CONTACT HOUSING,Female, Pole

5 wire, female

1шт.

6

121542C1

SWITCH

toggle DPDT on off on

1шт.

7

149506C1

CABLE

assy switch

1шт.

8

223-10

FUSE,10 Amp, Type 3AG

1шт.

10

116259C4

BOX

chassis metal grain drill

1шт.

11

116270C1

PLUG

1шт.

12

169851C1

GROMMET

strain relief

1шт.

13

147230C1

PLATE

W/PRODUCT GRAPHIC

1шт.

14

147218C1

DECAL,Control Right Off Left

control panel

1шт.

15

57603C1

NUT

SWITCH

1шт.

16

260-1446

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

1шт.

20

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

21

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

2шт.

23

111322C1

CABLE

assy chassis graindrill

1шт.

24

111323C1

CABLE

assy 16 ga round nylon ends

1шт.

25

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

26

87825

NUT,#10-32

2шт.

29

1268187C1

WIRE CLAMP

YZD

1шт.

30

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

31

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

35

A181760

CABLE

marker control, cab connection

1шт.

36

A181761

CABLE

marker control

1шт.

37

A181753

CABLE

, Serial Range: pigtail-relay

1шт.

38

A181758

CABLE

marker control

1шт.

39

144910C3

HARNESS

marker extension 5497mm (216") long

1шт.
