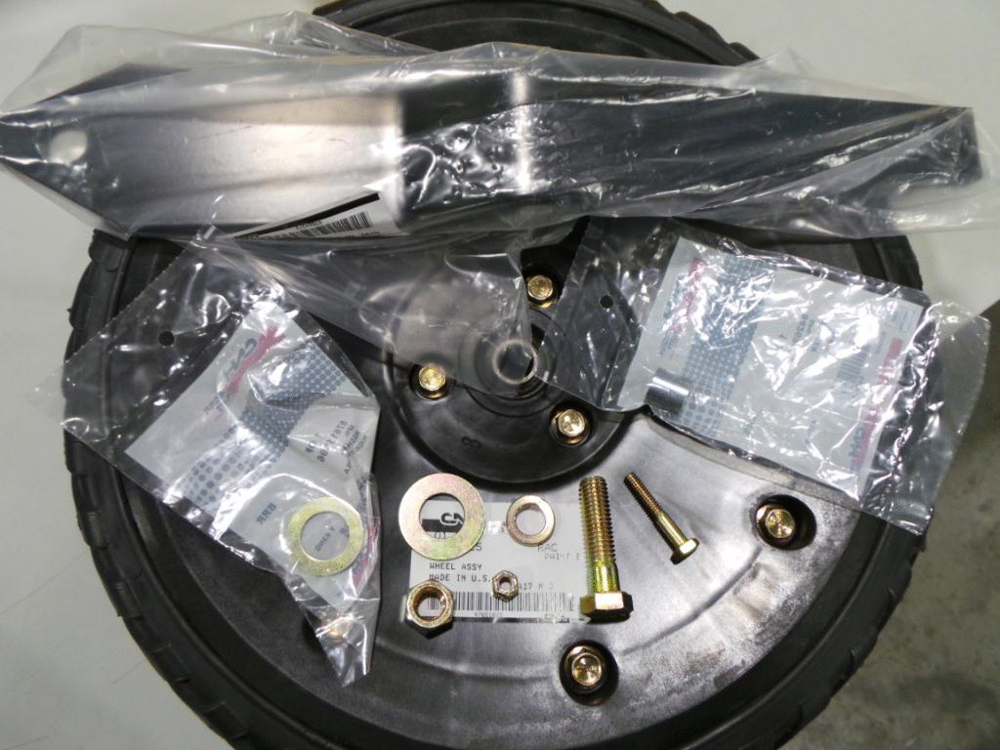

Запчасти Case IH 5400 (13.100) - PACKING, KIT (09) - CHASSIS/ATTACHMENTS

1

47651826

KIT

PACKER WHEEL 12 INCLUDES 2 --

1шт.

2

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

87613196

WASHER,0.78" ID x 1.25" OD x 0.03" Thk

2шт.

4

87034831

WASHER,0.78" ID x 1.5" OD x 0.12" Thk

2шт.

5

842699C1

SPACER

3шт.

6

47624373

ARM

1шт.

7

47651825

WHEEL ASSY

1шт.

8

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

9

86625061

NUT,1/4"-20, GB

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

11

280431

NUT,1/2"-13, G5

2шт.
