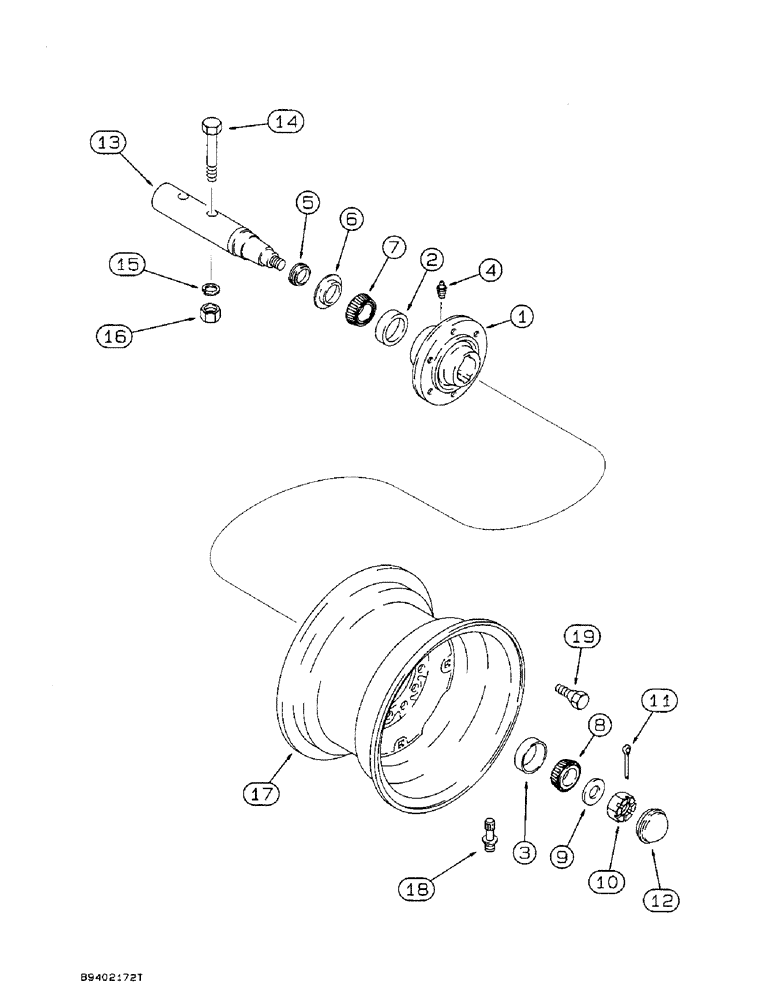

Запчасти Case IH 5400 (9-106) - TRANSPORT WHEELS AND HUBS (09) - CHASSIS

0

606468R21

HUB

6 bolt c/w cups only

4шт.

1

NSS

NOT SOLD SEPARAT

HUB Wheel, 6 Bolt

1шт.

2

663558R1

BEARING CUP

#LM501310

1шт.

3

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

4шт.

4

606556R91

OIL SEAL

W/SLEEVE, OIL No Longer Available, Order 594702R91 and 594703R1 Below

4шт.

5

594702R91

SEAL

2" x 2 13/16"od

1шт.

6

594703R1

SLEEVE

wear 3 1/4" flange od

1шт.

7

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Cup & Cone

4шт.

8

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

4шт.

8

84356153GV

BEARING

Value

4шт.

9

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

4шт.

10

70120D

SLOTTED NUT,7/8"-14

4шт.

11

87673

COTTER PIN,1/8" x 1 3/4"

4шт.

12

224066C1

HUB CAP

dust 2 21/64" od

4шт.

13

1978726C1

SPINDLE

6 BOLT HV

4шт.

14

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

16

280431

NUT,1/2"-13, G5

4шт.

17

A57879

RIM

15X8 6 hole with VG +1 1/8" offset

4шт.

18

810769C1

VALVE

tire stem VS/936

4шт.

19

198056

WHEEL BOLT,1/2" - 20 x 1.031"

24шт.
