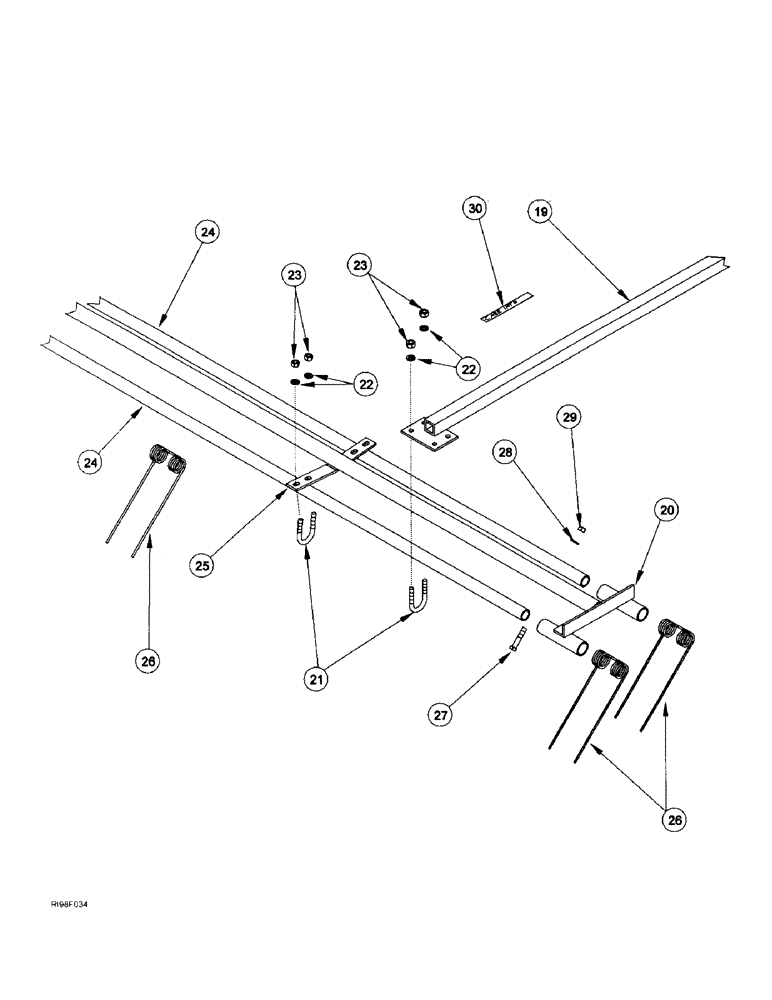

Запчасти Case IH 5400 (9-104) - SPRING TOOTH HARROW ATTACHMENT (09) - CHASSIS

0

186778A1

ATTACHMENT

harrow 15' spring tooth

1шт.

15' Drill

1шт.

0

186779A1

ATTACHMENT

harrow 20' spring tooth

1шт.

20' Drill

1шт.

19

186770A1

TUBE,1.5" Diameter, 65" Length

4шт.

20

186776A1

BRACE

HARROW -15'

2шт.

15' Drill

1шт.

20

186777A1

BRACE

HARROW -20'

2шт.

20' Drill

1шт.

21

186771A1

U-BOLT

BOLT "U" 1/2-13 X 1-3/8

16шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

32шт.

23

280431

NUT,1/2"-13, G5

32шт.

24

186774A1

TUBE,94" Length

HARROW-15'

4шт.

20' Drill

1шт.

24

186775A1

TUBE,126" Length

HARROW -20'

4шт.

20' Drill

1шт.

25

186773A1

STRAP

CONNECTOR

4шт.

26

186772A1

TOOTH

SPRING HARROW

48шт.

15' Drill

1шт.

26

186772A1

TOOTH

SPRING HARROW

64шт.

20' Drill

1шт.

27

280117

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

28

81547

LOCK WASHER,7/16"

1шт.

29

280717

NUT,7/16"-14, G5

1шт.

30

1973420C1

DECAL

CASE INTERNATIONAL

2шт.
