Запчасти Case IH 5400 (9-102) - SPRING TOOTH HARROW ATTACHMENT, MOUNTING HARDWARE (09) - CHASSIS

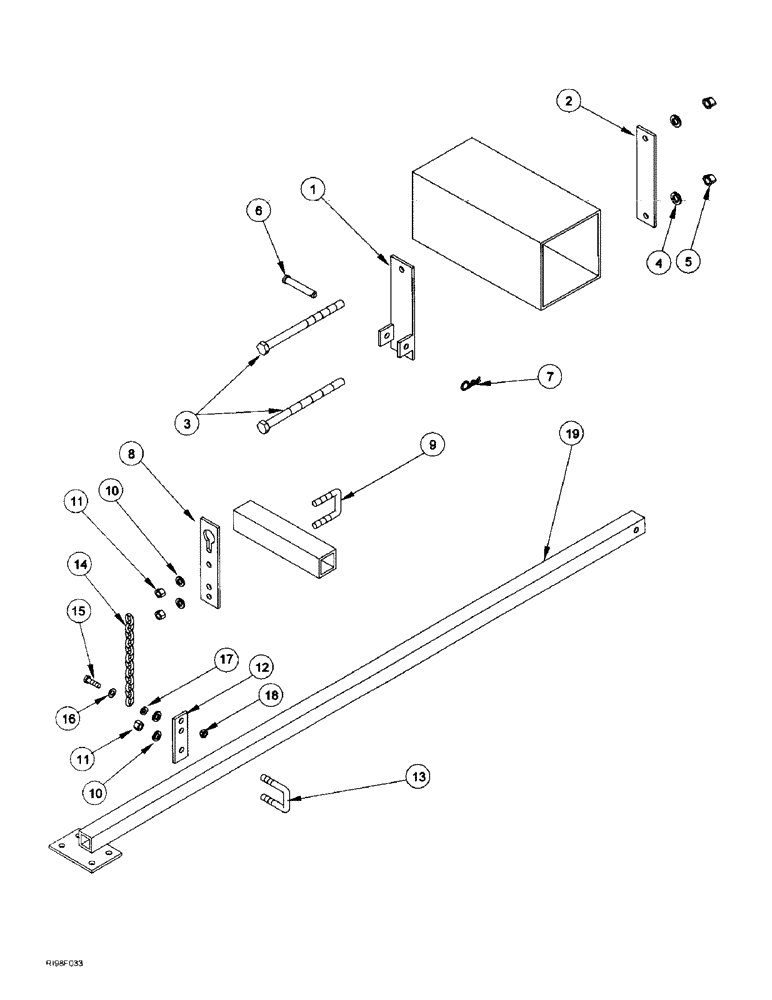

Схема запчастей Case IH 5400 - (9-102) - SPRING TOOTH HARROW ATTACHMENT, MOUNTING HARDWARE (09) - CHASSIS
16
6
13
2
17
11
7
19
12
8
1
5
9
4
14
18
15
11
10
10
3

Артикул

Название

Примечание

Количество

0

186778A1

ATTACHMENT

harrow 15' spring tooth

1шт.

15' Drill

1шт.

0

186779A1

ATTACHMENT

harrow 20' spring tooth

1шт.

20' Drill

1шт.

1

186762A1

BRACKET

MOUNTING

4шт.

2

186763A1

STRAP

4шт.

3

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

8шт.

4

12034871

WASHER

5/8"

8шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

6

186764A1

PIN

W/CLIP 9/16 X 3

4шт.

7

87421748

HAIR PIN COTTER

.120" x 2 3/8"

4шт.

8

186765A1

STRAP

CHAIN

4шт.

9

186766A1

U-BOLT

BOLT "U" 1/2-13 X 2-1/16

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

11

280431

NUT,1/2"-13, G5

8шт.

12

186767A1

STRAP

4шт.

13

186768A1

U-BOLT

BOLT "U" 1/2-13 X 1-9/16

4шт.

14

186769A1

CHAIN (AG)

432 mm (17 inch) Long

4шт.

15

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

16

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

18

9628503

NUT,3/8"-16, G5

4шт.

19

186770A1

TUBE,1.5" Diameter, 65" Length

4шт.

Выбрано товаров: 23
