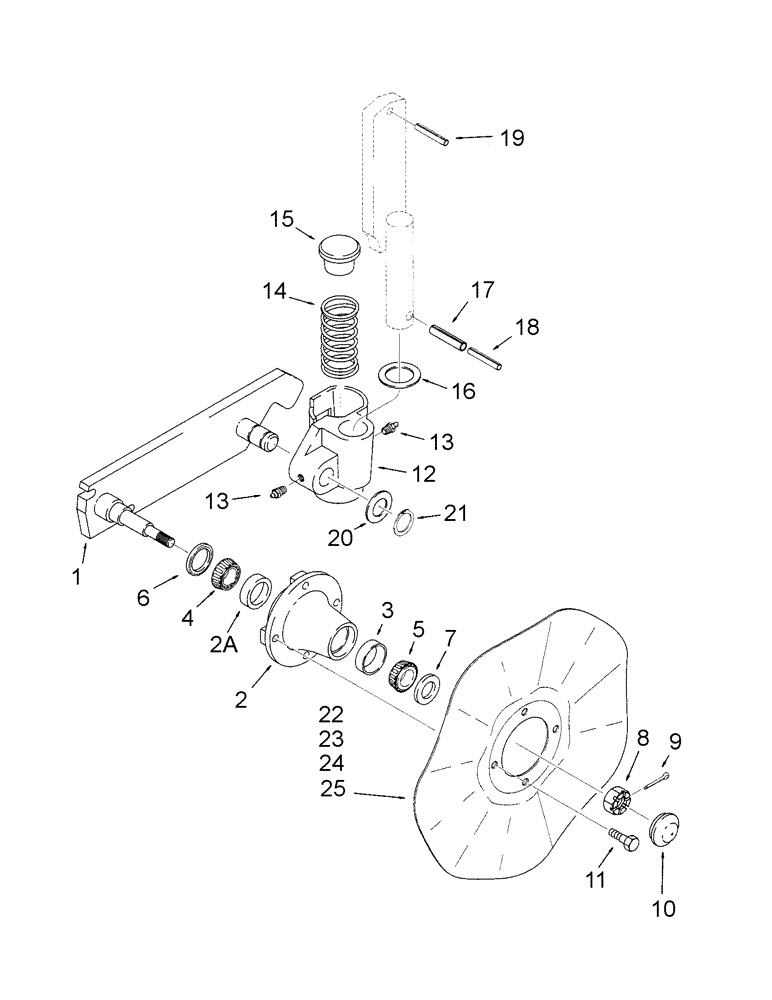

Запчасти Case IH 5400 (9-098) - COULTER ARM AND DISKS (BEFORE 02/01/2001) (09) - CHASSIS

1

142142A1

ARM ASSY.

W/KNEE & HUB, Years: -31-JAN-01

1шт.

2

142285A1

HUB ASSY.

4 bolt w/ cups

1шт.

2a

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

1шт.

3

36725

BEARING CUP,45.26mm OD x 12.06mm W

#LM11910

1шт.

4

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

1шт.

5

36724

BEARING CONE,19.07mm ID x 16.64mm W

#LM11949

1шт.

6

B13281

SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk

Grease, Bearing

1шт.

7

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

8

86632554

SLOTTED NUT,3/4"-16, G5

1шт.

9

88350

COTTER PIN,5/32" x 1-1/2"

1шт.

10

142278A1

DUST CAP

1шт.

11

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

4шт.

12

142290A1

PIVOT

CASTING, Years: -01-JAN-01

1шт.

13

80715

CHAIN

2шт.

14

142289A1

SPRING

COULTER

1шт.

15

142288A1

CAP

SPRING

1шт.

16

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

1шт.

17

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

1шт.

18

438-11440

LOCK PIN,7/32" x 2 1/2", Slotted

1шт.

19

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

1шт.

20

495-81237

WASHER,1 17/64" x 1 7/8" x 048"

1шт.

21

100-16125

SNAP RING,#125, Ext

1шт.

22

140450A2

PLOW DISC

COULTER, 16IN BUBBLE

1шт.

23

140445A2

PLOW DISC

COULTER, 17IN FLUTED

1шт.

24

140447A2

PLOW DISC

COULTER, 18 IN. 8 WAVE

1шт.

25

129195A2

PLOW DISC

SALFORD COULTER, 17.6IN 13 WAVE

1шт.
