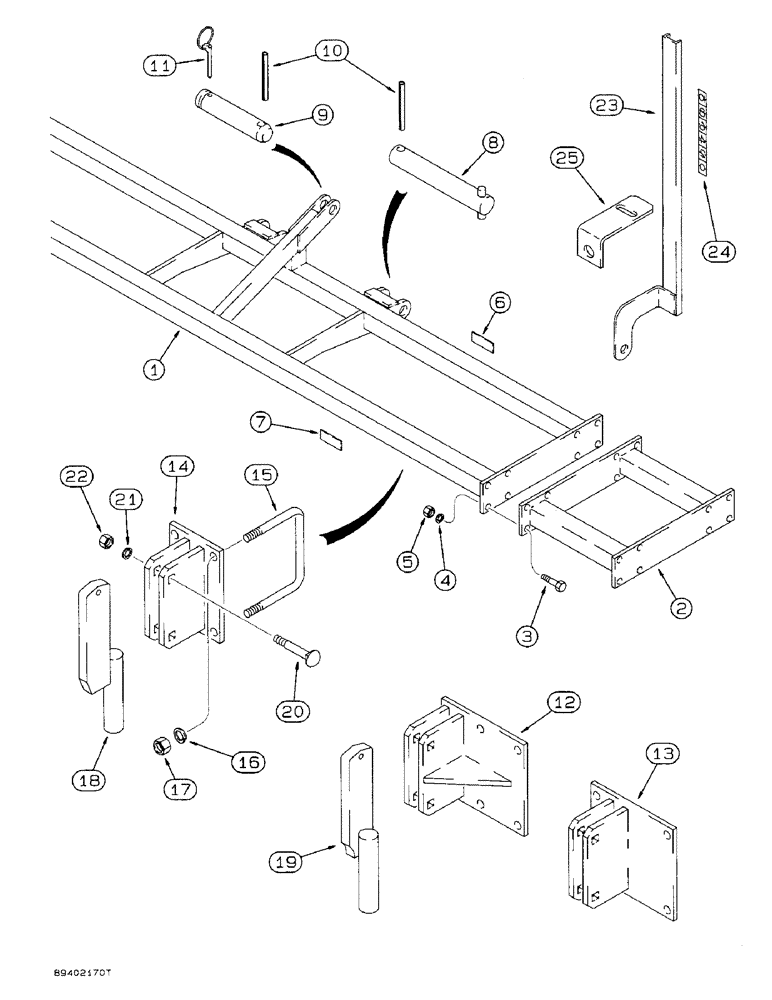

Запчасти Case IH 5400 (9-096) - COULTER FRAME (CADDY FRAME) AND MOUNTING BRACKETS (09) - CHASSIS

1

142099A2

FRAME

15'-2" COULTER

1шт.

15' Drill

1шт.

2

142101A1

FRAME

EXTENSION, COULTER BAR

2шт.

20' Drill

1шт.

3

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

4

12034871

WASHER

5/8"

16шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

16шт.

6

1284365C2

REFLECTOR

amber 1.97" x 4.3"

2шт.

7

1284374C1

REFLECTOR,Reflector Red

red

2шт.

8

142100A1

HITCH PIN

LOWER

2шт.

9

142254A1

HITCH PIN

1шт.

10

38-13240

LOCK PIN,1/2" x 2 1/2", Slotted

3шт.

11

372907R91

LINCH PIN

linch 7/16" x 2" heavy duty

1шт.

12

142144A1

BRACKET

FLATBACK OFFSET COULTER

1шт.

13

142146A1

BRACKET

FLATBACK OFF CENTER COULTER

1шт.

14

142148A1

BRACKET

FLATBACK CENTERED COULTER

1шт.

15

142264A1

U-BOLT

BOLT "U" Bracket of Coulter Frame (2 Used Per Bracket)

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

17

280431

NUT,1/2"-13, G5

1шт.

18

142143A1

SHANK

COULTER

1шт.

19

142535A1

SHANK

COULTER OFFSET

2шт.

8" Row Spacing

1шт.

20' Drill

1шт.

20

280435

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

22

280431

NUT,1/2"-13, G5

1шт.

23

142035A1

GAUGE

DEPTH

1шт.

24

142397A1

DECAL

DEPTH GAUGE

1шт.

25

142036A1

GUIDE

DEPTH GAUGE

1шт.
