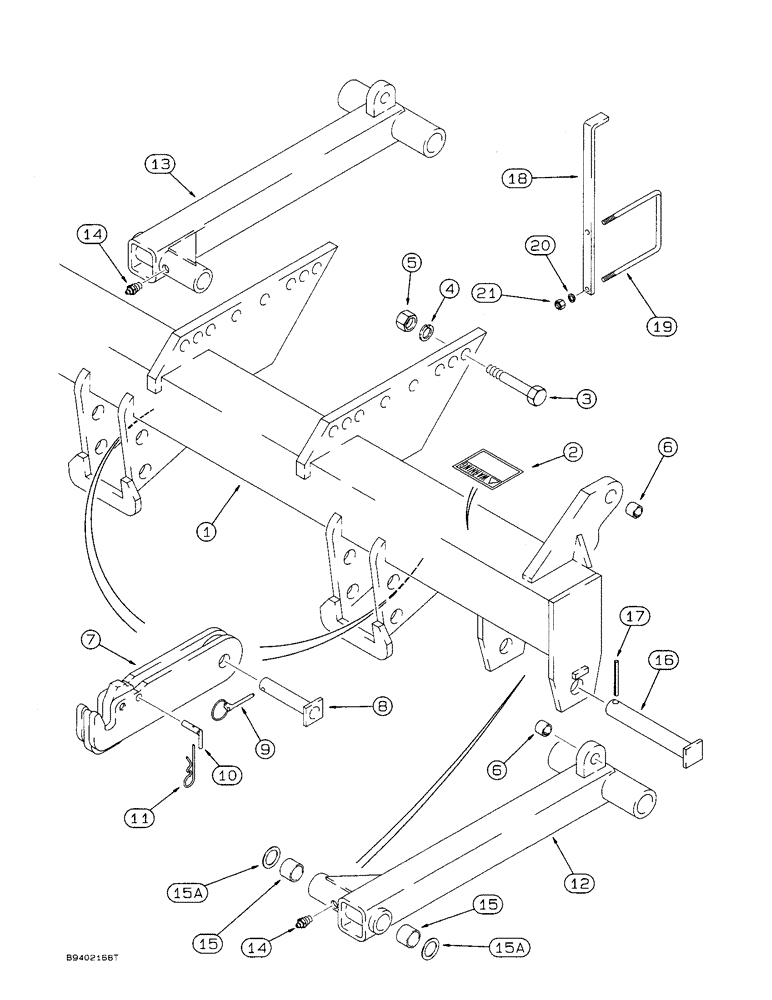

Запчасти Case IH 5400 (9-092) - REAR FRAME, TRANSPORT ARMS AND DRILL MOUNTING PARTS (09) - CHASSIS

1

142070A1

FRAME ASSY

REAR

1шт.

2

140384A1

DECAL

WARNING TRANSPORT LOCK

2шт.

3

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

16шт.

4

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

16шт.

5

280954

NUT,3/4"-10, G5

16шт.

6

142295A1

BUSHING

Tension

4шт.

7

142064A1

LINK

FLEX-15.5 IN.

2шт.

8

142296A1

PIN

FLEX LINK

1шт.

9

372907R91

LINCH PIN

linch 7/16" x 2" heavy duty

1шт.

10

142029A1

PIN

QUICK LATCH

2шт.

11

87421748

HAIR PIN COTTER

.120" x 2 3/8"

2шт.

12

142065A1

ARM

SUPPORT, RH WHEEL

1шт.

13

142066A1

ARM

SUPPORT, LH WHEEL

1шт.

14

80715

CHAIN

2шт.

15

142303A1

BUSHING

1.75 X 1.937, Nylon

4шт.

15a

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

4шт.

16

142024A1

PIN

WHEEL LEG

2шт.

17

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

2шт.

18

142062A1

SUPPORT

BRACKET, DEPTH COLLAR STORAGE

1шт.

19

142372A1

U-BOLT

3/8"-16 x 7 x 8

1шт.

20

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

21

9628503

NUT,3/8"-16, G5

2шт.
