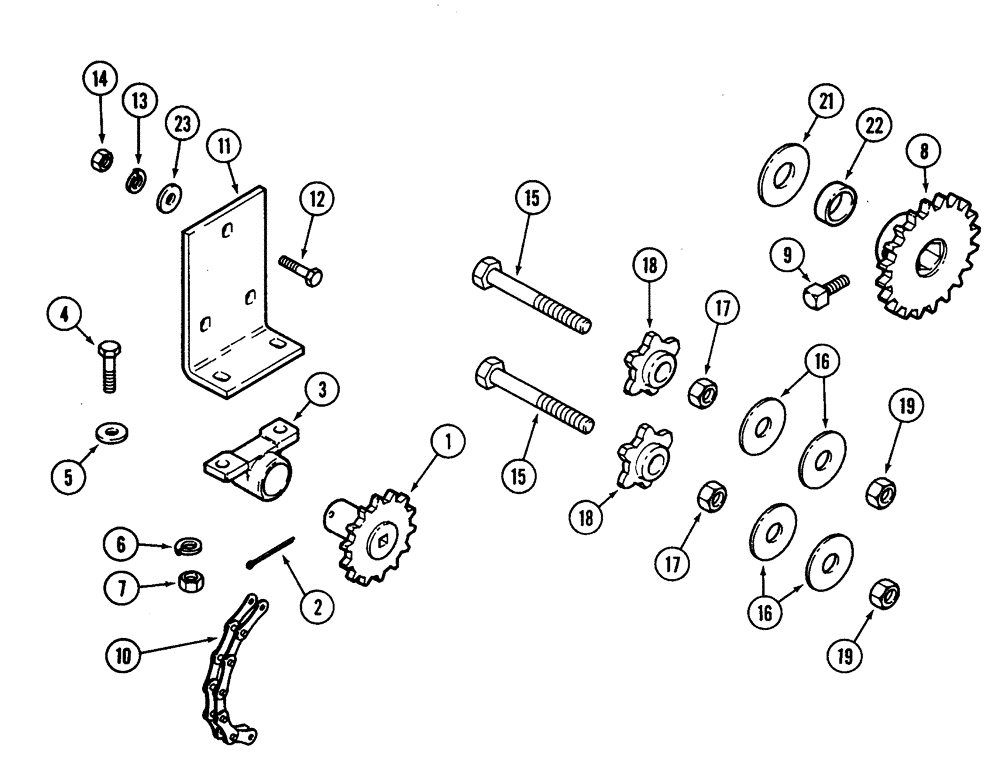

Запчасти Case IH 5400 (9-090) - GRASS SEED ATTACHMENT, SEED DRIVE (09) - CHASSIS

1

1263869C1

SPROCKET

14 tooth

2шт.

2

80755

COTTER PIN,1/8" OD x 1" L

2шт.

3

816533C1

BRACKET

grass seed shaft

2шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

5

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

4шт.

6

80681

LOCK WASHER,5/16"

4шт.

7

9635082

NUT,5/16" - 18, Gr 5

4шт.

8

97755C1

SPROCKET

19 tooth

2шт.

9

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

4шт.

10

REF

INSTRUCTION

CHAIN ASSEMBLY - DRIVE

2шт.

Use 51 links from roll 569089R91 and 1 connecting link 1277928C91 and 2 offset links 242-1710

1шт.

11

96264C1

BRACKET

gsa hopper

2шт.

12

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

13

80682

LOCK WASHER,1/4"

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

15

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

4шт.

15

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

4шт.

16

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

8шт.

17

86632556

JAM NUT,Jam, 5/8"-11, G5

4шт.

18

819457C1

SPROCKET

6 tooth, plastic

4шт.

19

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

20

86624113

SET SCREW,Sq Hd, 1/2" - 13 x 3/4"

4шт.

21

496-21106

WASHER,1 1/16" x 2" x .209", HDN

4шт.

22

1277812C3

SPACER

double sprocket

6шт.

23

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

6шт.
