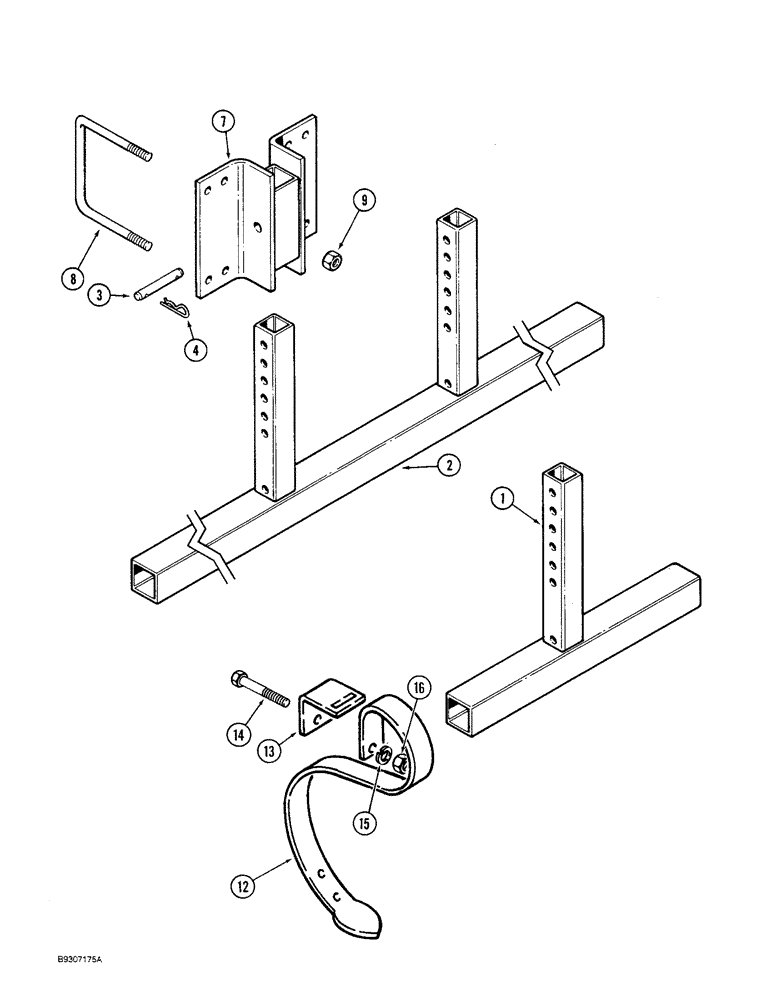

Запчасти Case IH 5400 (9-080) - TRACK ERASER (09) - CHASSIS

1

91306C1

TUBE,255, 137 mm L

track eraser short

2шт.

2

91290C1

TUBE,610, 450 mm L

track eraser long

2шт.

3

439-11060

HEADED PIN,15.88mm OD x 95.25mm L

1шт.

4

1970957C1

SPRING

PIN, HAIR (SPRING)

1шт.

7

91287C1

SUPPORT

track eraser

1шт.

8

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

9

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

12

1256313C1

FINGER

s-tine

1шт.

13

1256325C1

ANGLE

clamp C loop, Years: -01-JUN-08

1шт.

13

87649472

ANGLE

Clamp C Loop, Start Year: 01-JUN-08

1шт.

14

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

16

280431

NUT,1/2"-13, G5

1шт.
